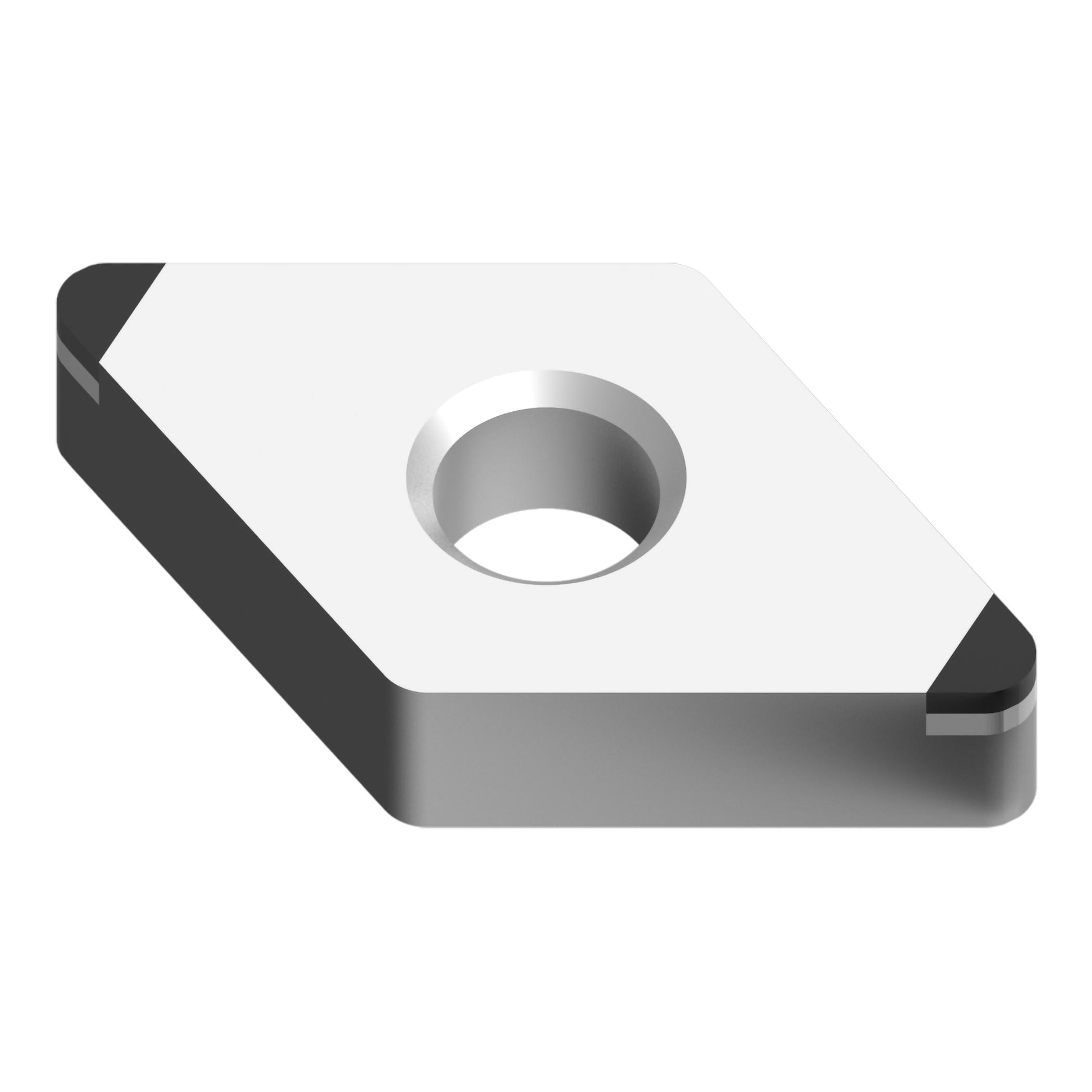

NP-DNGA431-GAWS2JL MB8120 CBN INSERT
NP-DNGA431-GAWS2JL MB8120 CBN INSERT
MIT10599198
10599198
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10599198
- Chipbreaker: Flat Top
- Corner Radius: 0.4 mm
- Cutting Direction: Left Hand
- Hole Diameter: 0.203 in
- Included Angle: 55 deg
- Inscribed Circle: 12.7 mm
- Insert Style: DNGA
- ISO Code: NP-DNGA150404GAWS2JL MB8120
- Material: CBN
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Rhombic
- Thickness: 4.76 mm
- Type: 2-Corner
- ANSI Code: NP-DNGA431-GAWS2JL MB8120
- Has Attributes: Yes
- Has Image: Yes
- Length: 15.5 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MB8120
- Application
For Continuous-Light Interrupted Machining
