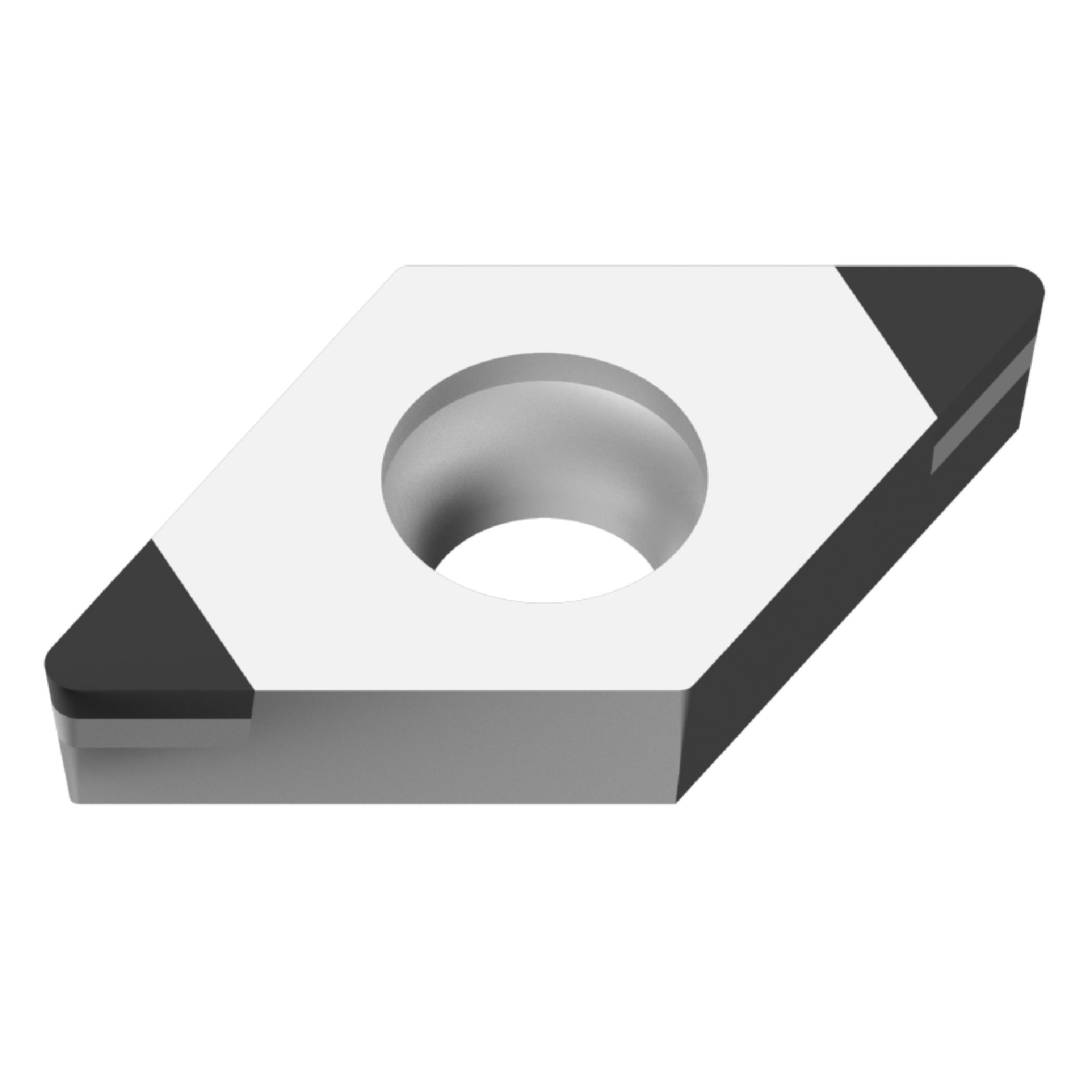

NP-DCGW32.52-GA2 MB8120 CBN INSERT
NP-DCGW32.52-GA2 MB8120 CBN INSERT
MIT10599143
10599143
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10599143
- Chipbreaker: L-F
- Corner Radius: 0.031 in
- Cutting Direction: Neutral
- Hole Diameter: 0.173 in
- Included Angle: 55 deg
- Inscribed Circle: 0.37 in
- Insert Style: DCGW
- ISO Code: NP-DCGW11T308GA2 MB8120
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 0.15 in
- Type: 2-Corner
- ANSI Code: NP-DCGW32.52-GA2 MB8120
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.45 in
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: VP15TF
- Application
For Continuous-Light Interrupted Machining
