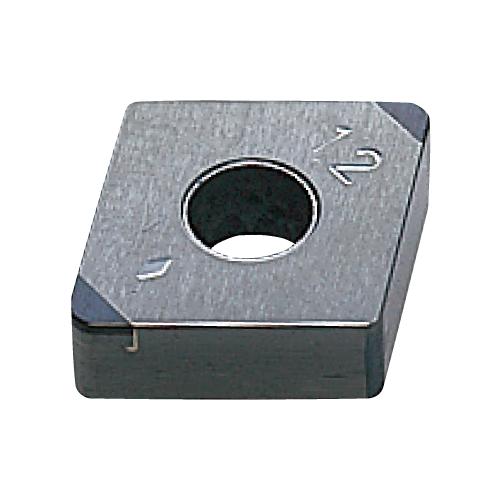

NP-CNGA432-TA2 MB8120 CBN INSERT
NP-CNGA432-TA2 MB8120 CBN INSERT
MIT10598993
10598993
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10598993
- Chipbreaker: TA
- Corner Radius: 0.8 mm
- Cutting Direction: Neutral
- Included Angle: 80 deg
- Inscribed Circle: 12.7 mm
- Insert Style: CNGA
- ISO Code: NP-CNGA120408TA2 MB8120
- Material: Carbon
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Rhombic
- Thickness: 4.76 mm
- Type: Negative
- ANSI Code: NP-CNGA432-TA2
- For Use On: Cast Iron
- Has Attributes: Yes
- Has Image: Yes
- Length: 12.9 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MB8120
- Application
For Interrupted Machining
