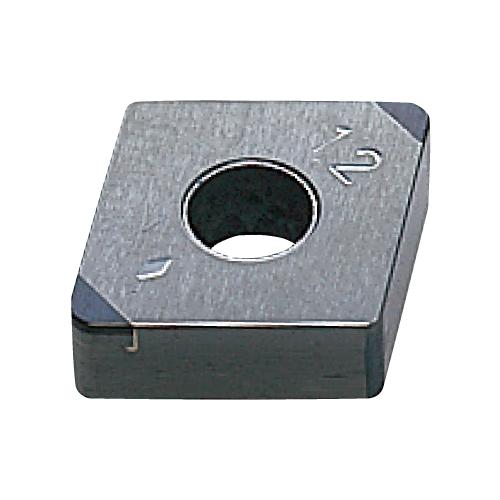

NP-CNGA430.5-GA2 MB8120 CBN INSERT
NP-CNGA430.5-GA2 MB8120 CBN INSERT
MIT10598863
10598863
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10598863
- Chipbreaker: GA
- Corner Radius: 0.2 mm
- Cutting Direction: Neutral
- Included Angle: 80 deg
- Inscribed Circle: 12.7 mm
- Insert Style: CNGA
- ISO Code: NP-CNGA120402GA2 MB8120
- Material: Carbon
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Rhombic
- Thickness: 4.76 mm
- Type: Negative
- ANSI Code: NP-CNGA430.5-GA2
- For Use On: Cast Iron
- Has Attributes: Yes
- Has Image: Yes
- Length: 12.9 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MB8120
- Application
For Continuous-Light Interrupted Machining
