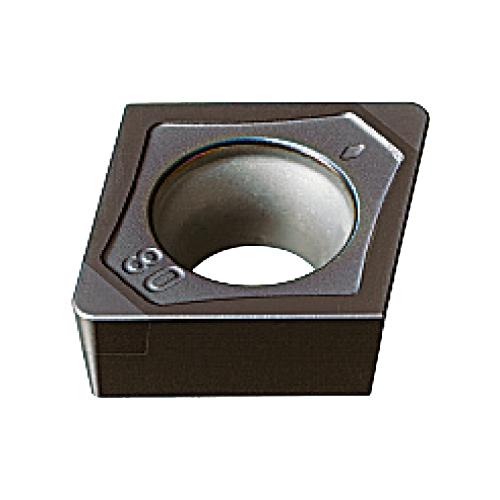

NP-CCGW21.50.5-GA2 MB8120 CBN INSERT
NP-CCGW21.50.5-GA2 MB8120 CBN INSERT
MIT10598740
10598740
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10598740
- Chipbreaker: Flat Top
- Corner Radius: 0.2 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.11 in
- Included Angle: 80 deg
- Inscribed Circle: 6.35 mm
- Insert Style: CCGW
- ISO Code: NP-CCGW060202GA2 MB8120
- Material: CBN
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 2.38 mm
- Type: 2-Corner
- ANSI Code: NP-CCGW21.50.5-GA2 MB8120
- Has Attributes: Yes
- Has Image: Yes
- Length: 6.45 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MB8120
- Application
For Continuous-Light Interrupted Machining
