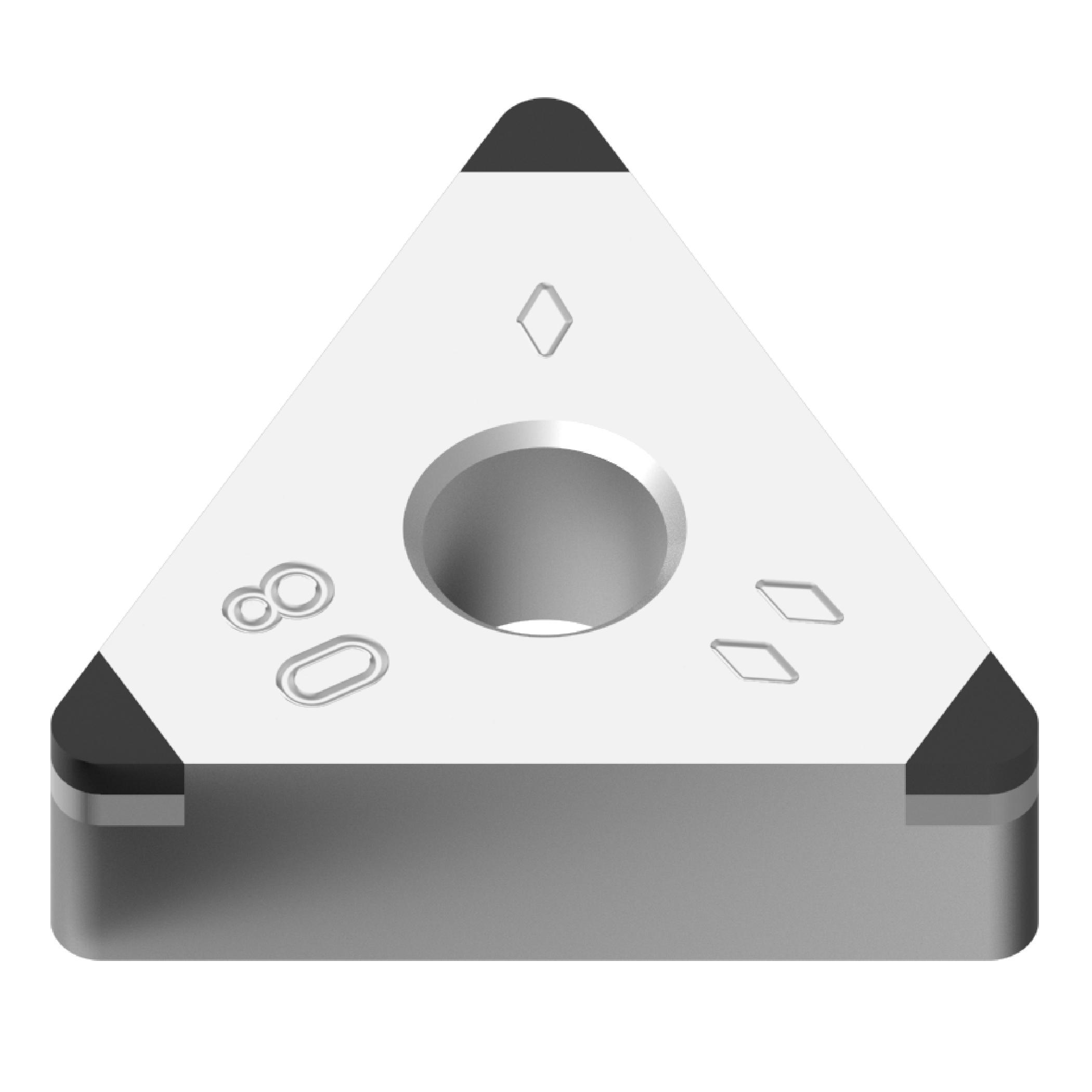

NP-TNGA332-FS3 MB8110 CBN INSERT
NP-TNGA332-FS3 MB8110 CBN INSERT
MIT10598566
10598566
116.52
/ EA
http://schema.org/OutOfStock
/Product/MIT10598566
- Chipbreaker: FS
- Corner Radius: 0.8 mm
- Cutting Direction: Neutral
- Included Angle: 60 deg
- Inscribed Circle: 9.525 mm
- Insert Style: TNGA
- ISO Code: NP-TNGA160408FS3 MB8110
- Material: Carbon
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Triangle
- Thickness: 4.76 mm
- Type: Negative
- ANSI Code: NP-TNGA332-FS3
- For Use On: Cast Iron
- Has Attributes: Yes
- Has Image: Yes
- Length: 16.5 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MB8110
- Application
For Continuous Machining
