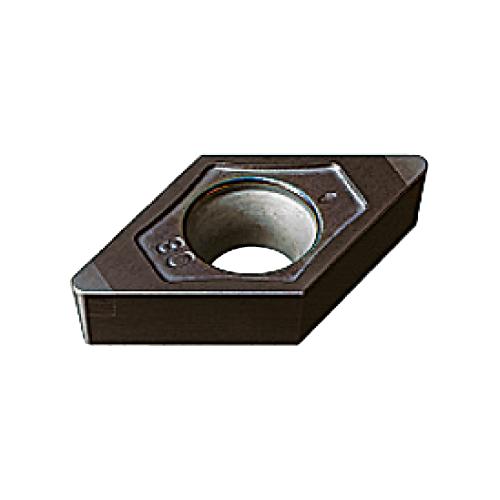

NP-DCGW21.50.5-FS2 MB8110 CBN INSERT
NP-DCGW21.50.5-FS2 MB8110 CBN INSERT
MIT10598344
10598344
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10598344
- Chipbreaker: Flat Top
- Corner Radius: 0.2 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.11 in
- Included Angle: 55 deg
- Inscribed Circle: 6.35 mm
- Insert Style: DCGW
- ISO Code: NP-DCGW070202FS2 MB8110
- Material: CBN
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 2.38 mm
- Type: 2-Corner
- ANSI Code: NP-DCGW21.50.5-FS2 MB8110
- Has Attributes: Yes
- Has Image: Yes
- Length: 7.75 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MB8110
- Application
For Continuous Machining
