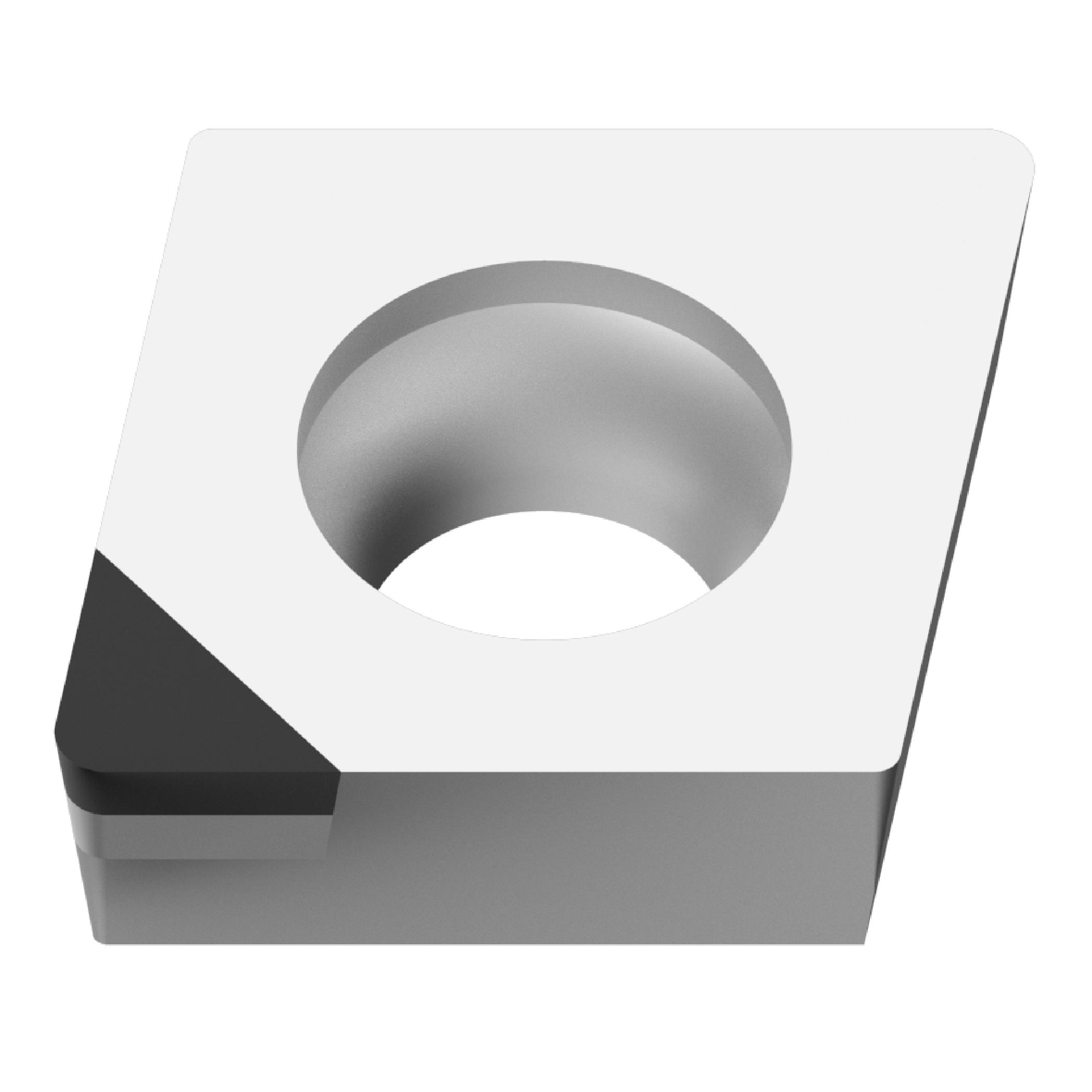

NP-CCGW1.20.90.5-FS MB8110 CBN INSERT
NP-CCGW1.20.90.5-FS MB8110 CBN INSERT
MIT10598047
10598047
67.85
/ EA
http://schema.org/OutOfStock
/Product/MIT10598047
- Chipbreaker: Flat Top
- Corner Radius: 0.2 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.07 in
- Included Angle: 80 deg
- Inscribed Circle: 3.57 mm
- Insert Style: CCGW
- ISO Code: NP-CCGW03S102FS MB8110
- Material: CBN
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 1.39 mm
- Type: 1-Corner
- ANSI Code: NP-CCGW03S102FS
- Has Attributes: Yes
- Has Image: Yes
- Length: 3.63 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MB8110
- Application
For Continuous Machining
