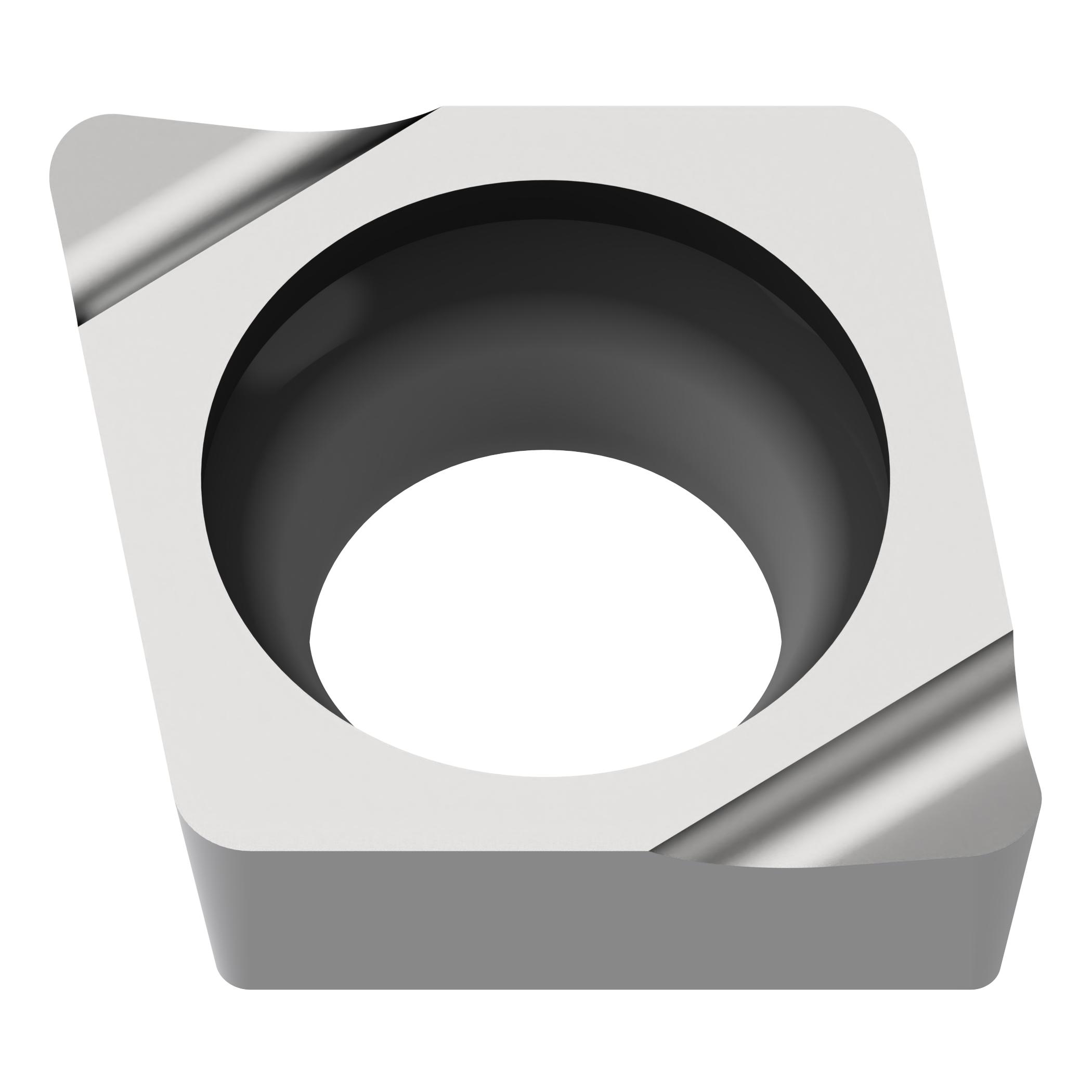

CCGT1.20.90.5LF MS6015 INSERT

CCGT1.20.90.5LF MS6015 INSERT

MIT10592816 10592816
21.04 / EA
http://schema.org/OutOfStock
CCGT1.20.90.5LF MS6015 INSERT
  • Chipbreaker: F
  • Corner Radius: 0.007 in
  • Cutting Direction: Left Hand
  • Hole Diameter: 0.079 in
  • Included Angle: 80 deg
  • Inscribed Circle: 0.14 in
  • Insert Style: CCGT
  • Rake: Positive
  • Relief Angle: 7 deg
  • Shape: Rhombic
  • Thickness: 0.05 in
  • Type: Solid
  • ANSI Code: CCGT03S102ML-F
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Mitsubishi Materials USA Corp
  • Manufacturer's Grade: MS6015
QTY
Add to List
  • Application
For Finish Cutting
