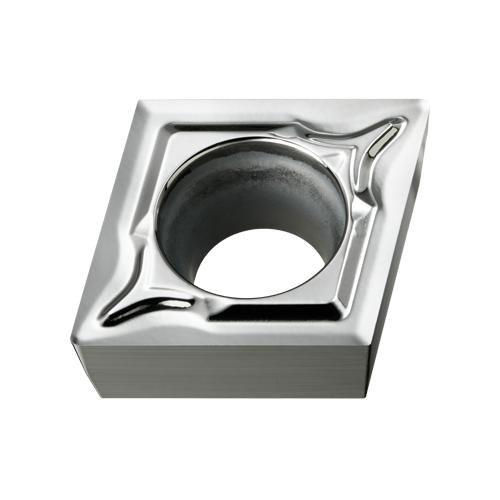

CCGT32.50.2MLS-P MS6015 INSERT

CCGT32.50.2MLS-P MS6015 INSERT

MIT10591826 10591826
16.10 / EA
http://schema.org/OutOfStock
CCGT32.50.2MLS-P MS6015 INSERT
  • Chipbreaker: LS-P
  • Corner Radius: 0.1 mm
  • Cutting Direction: Neutral
  • Included Angle: 80 deg
  • Inscribed Circle: 9.525 mm
  • Insert Style: CCGT
  • ISO Code: CCGT09T301M-LS-P MS6015
  • Material: Carbide
  • Rake: Positive
  • Relief Angle: 7 deg
  • Shape: Rhombic
  • Thickness: 3.97 mm
  • Type: Solid
  • ANSI Code: CCGT32.50.2MLS-P
  • Has Attributes: Yes
  • Has Image: Yes
  • Length: 9.67 mm
  • Manufacturer Name: Mitsubishi Materials USA Corp
  • Manufacturer's Grade: MS6015
QTY
Add to List
  • Application
For Difficult-to-cut Materials
