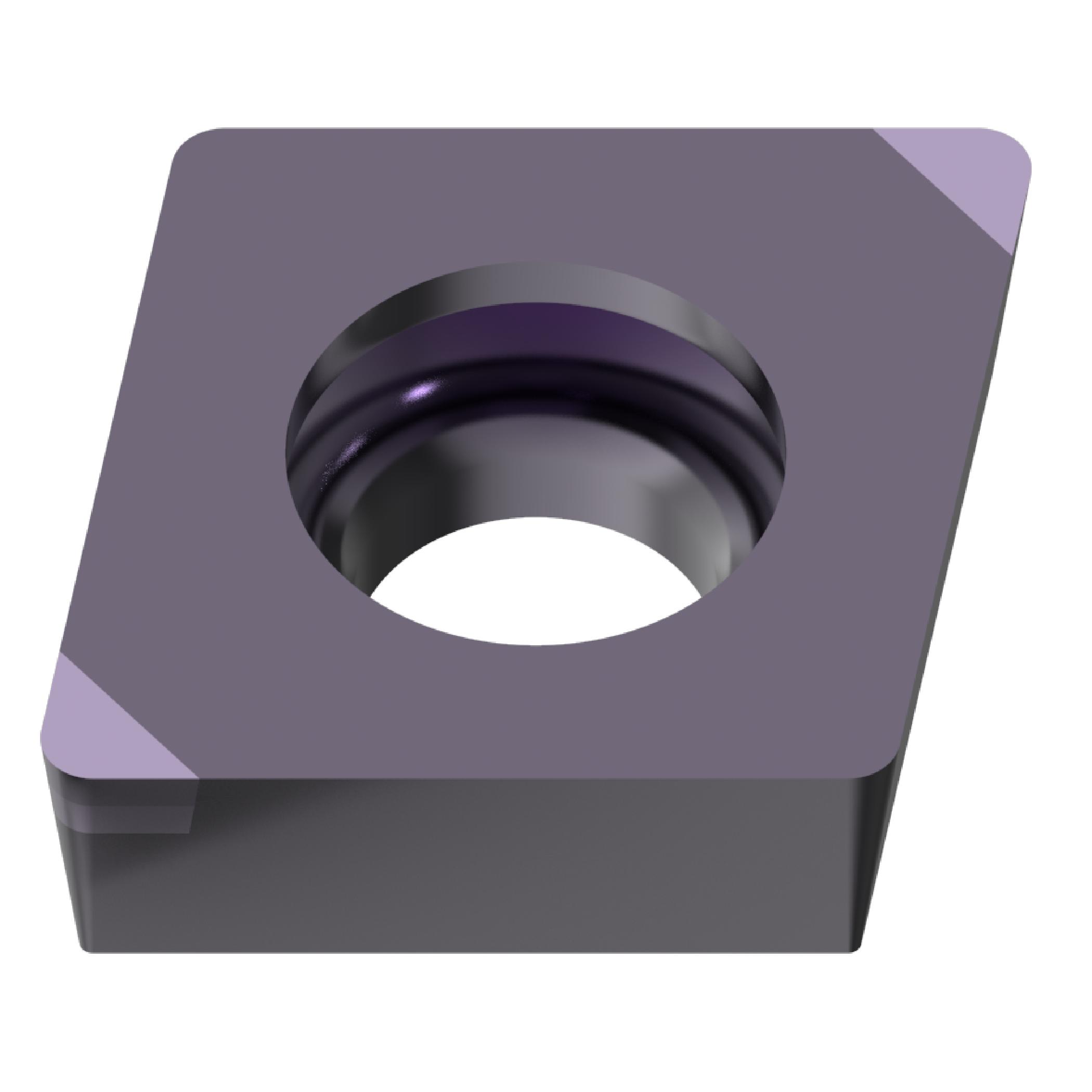

NP-CCGW32.51-FBWL2 CBN TURNING INSERT
NP-CCGW32.51-FBWL2 CBN TURNING INSERT
MIT10582442
10582442
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10582442
- Chipbreaker: Flat Top
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.173 in
- Included Angle: 80 deg
- Inscribed Circle: 9.525 mm
- Insert Style: CCGW
- ISO Code: NP-CCGW09T304FBWL2 BC8120
- Material: Coated CBN
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 3.97 mm
- Type: 2-Corner
- ANSI Code: NP-CCGW32.51-FBWL2 BC8120
- Has Attributes: Yes
- Has Image: Yes
- Length: 9.67 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8120
- Application
For Continuous Machining
