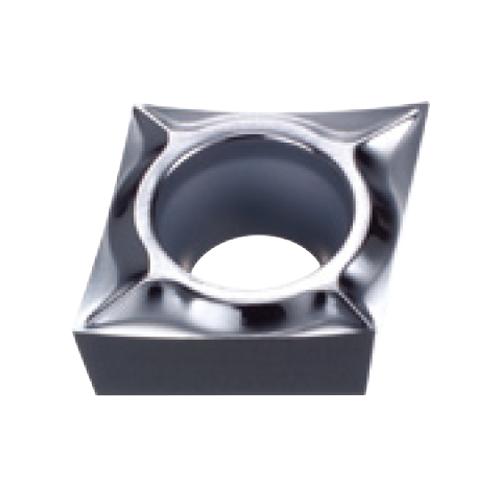

CCGT21.50.2MFS-P MT9005 INSERT

CCGT21.50.2MFS-P MT9005 INSERT

MIT10575789 10575789
14.70 / EA
http://schema.org/OutOfStock
CCGT21.50.2MFS-P MT9005 INSERT
  • Chipbreaker: FS-P
  • Corner Radius: 0.1 mm
  • Cutting Direction: Neutral
  • Hole Diameter: 0.11 in
  • Included Angle: 80 deg
  • Inscribed Circle: 6.35 mm
  • Insert Style: CCGT
  • ISO Code: CCGT060201M-FS-P MT9005
  • Material: Carbide
  • Rake: Positive
  • Relief Angle: 7 deg
  • Shape: Rhombic
  • Thickness: 2.38 mm
  • Type: Solid
  • ANSI Code: CCGT21.50.2MFS-P
  • Has Attributes: Yes
  • Has Image: Yes
  • Length: 6.45 mm
  • Manufacturer Name: Mitsubishi Materials USA Corp
  • Manufacturer's Grade: MT9005
QTY
Add to List
  • Application
For Difficult-to-cut Materials
