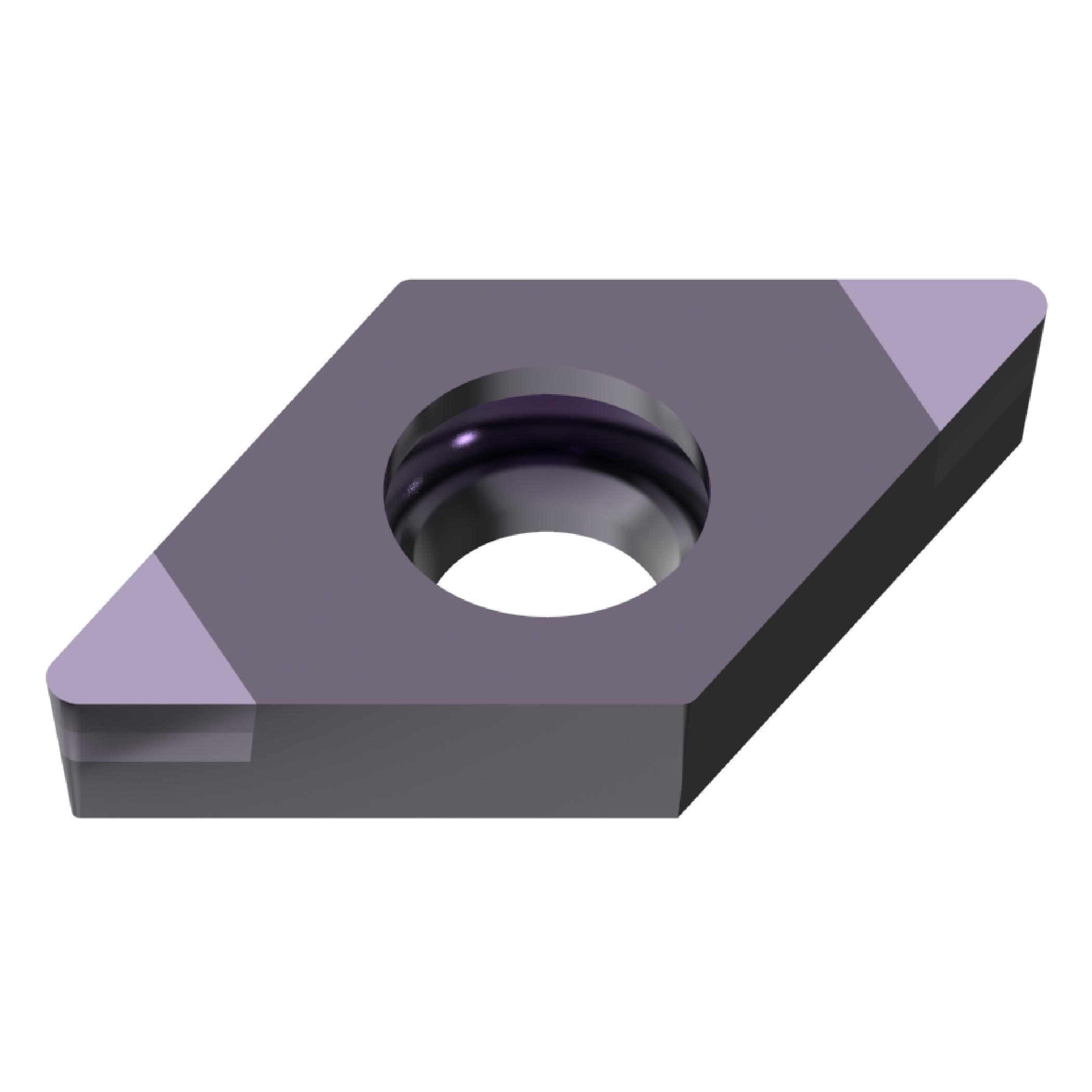

NP-DCGW32.51-TH2 BC8120 TURNING INSERT
NP-DCGW32.51-TH2 BC8120 TURNING INSERT
MIT10564554
10564554
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10564554
- Chipbreaker: Flat Top
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.173 in
- Included Angle: 55 deg
- Inscribed Circle: 9.525 mm
- Insert Style: DCGW
- ISO Code: NP-DCGW11T304TH2 BC8120
- Material: Coated CBN
- Rake: Negative
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 3.97 mm
- Type: 2-Corner
- ANSI Code: NP-DCGW32.51-TH2 BC8120
- Has Attributes: Yes
- Has Image: Yes
- Length: 11.63 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8120
- Application
For Interrupted Machining
