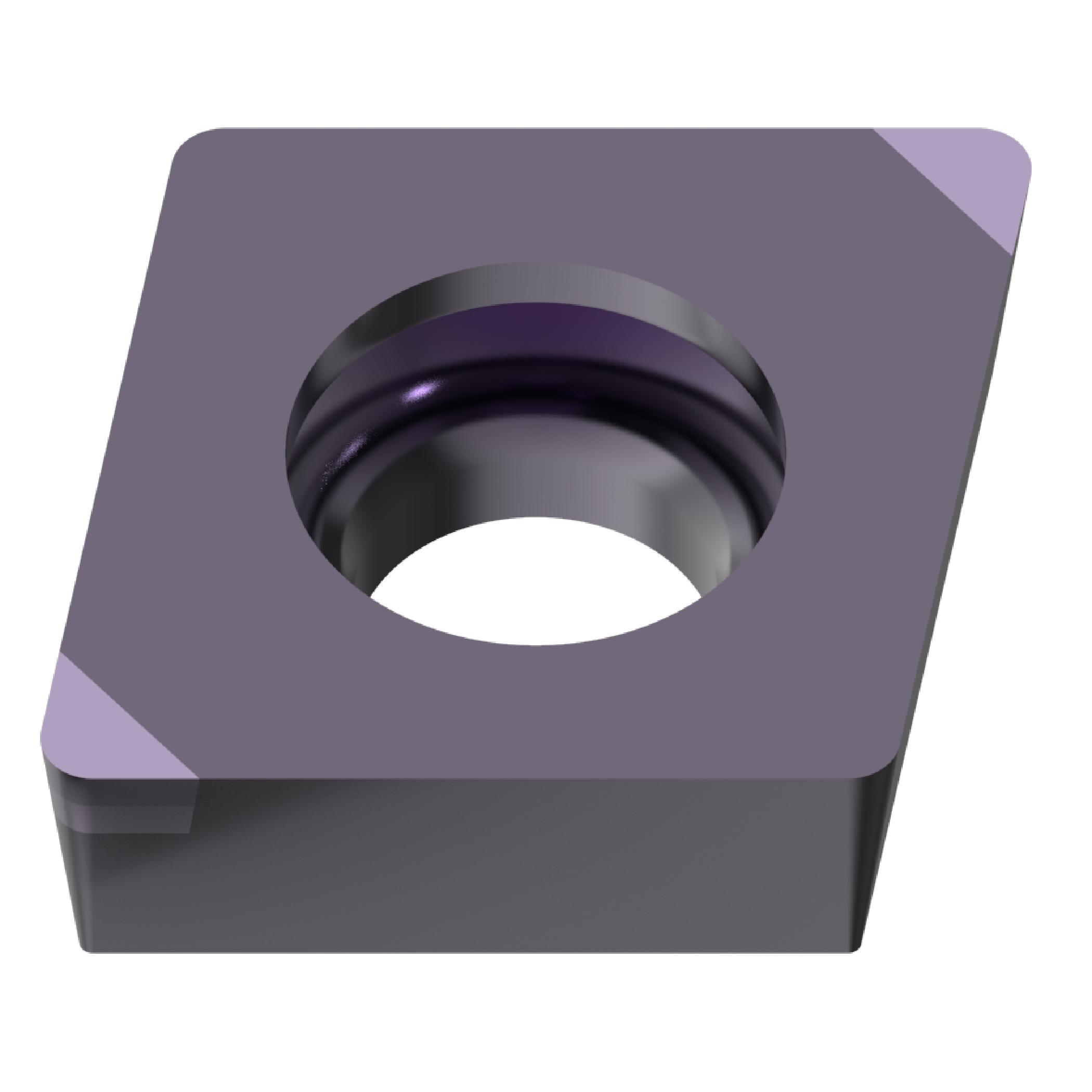

NP-CCGW32.52-GH2 BC8120 TURNING INSERT
NP-CCGW32.52-GH2 BC8120 TURNING INSERT
MIT10564240
10564240
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10564240
- Chipbreaker: GH
- Corner Radius: 0.031 in
- Cutting Direction: Neutral
- Included Angle: 80 deg
- Inscribed Circle: 0.37 in
- Insert Style: CCGW
- Material: Carbon
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 0.15 in
- Type: Positive
- ANSI Code: NP-CCGW32.52-GH2
- For Use On: Cast Iron
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8120
- Application
For Continuous-Light Interrupted Machining
