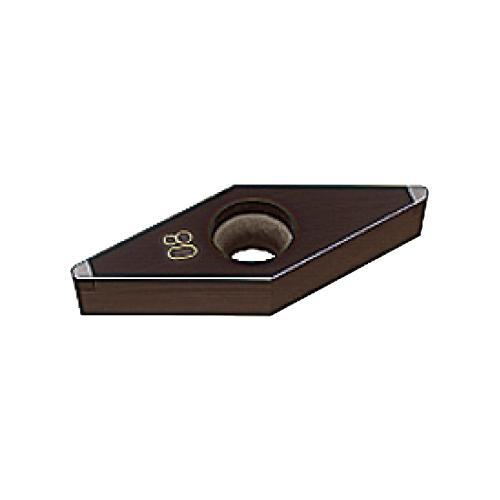

NP-VBGW331-GH2 BC8110 CBN TURNING INSERT
NP-VBGW331-GH2 BC8110 CBN TURNING INSERT
MIT10564004
10564004
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10564004
- Chipbreaker: MM
- Corner Radius: 0.015 in
- Cutting Direction: Neutral
- Hole Diameter: 0.174 in
- Included Angle: 35 deg
- Inscribed Circle: 0.37 in
- Insert Style: VBGW
- ISO Code: NP-VBGW160404GH2 BC8110
- Rake: Negative
- Relief Angle: 5 deg
- Shape: Rhombic
- Thickness: 0.18 in
- Type: 2-Corner
- ANSI Code: GY2M0500H080N-MM
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.65 in
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: NX2525
- Application
For Continuous-Light Interrupted Machining
