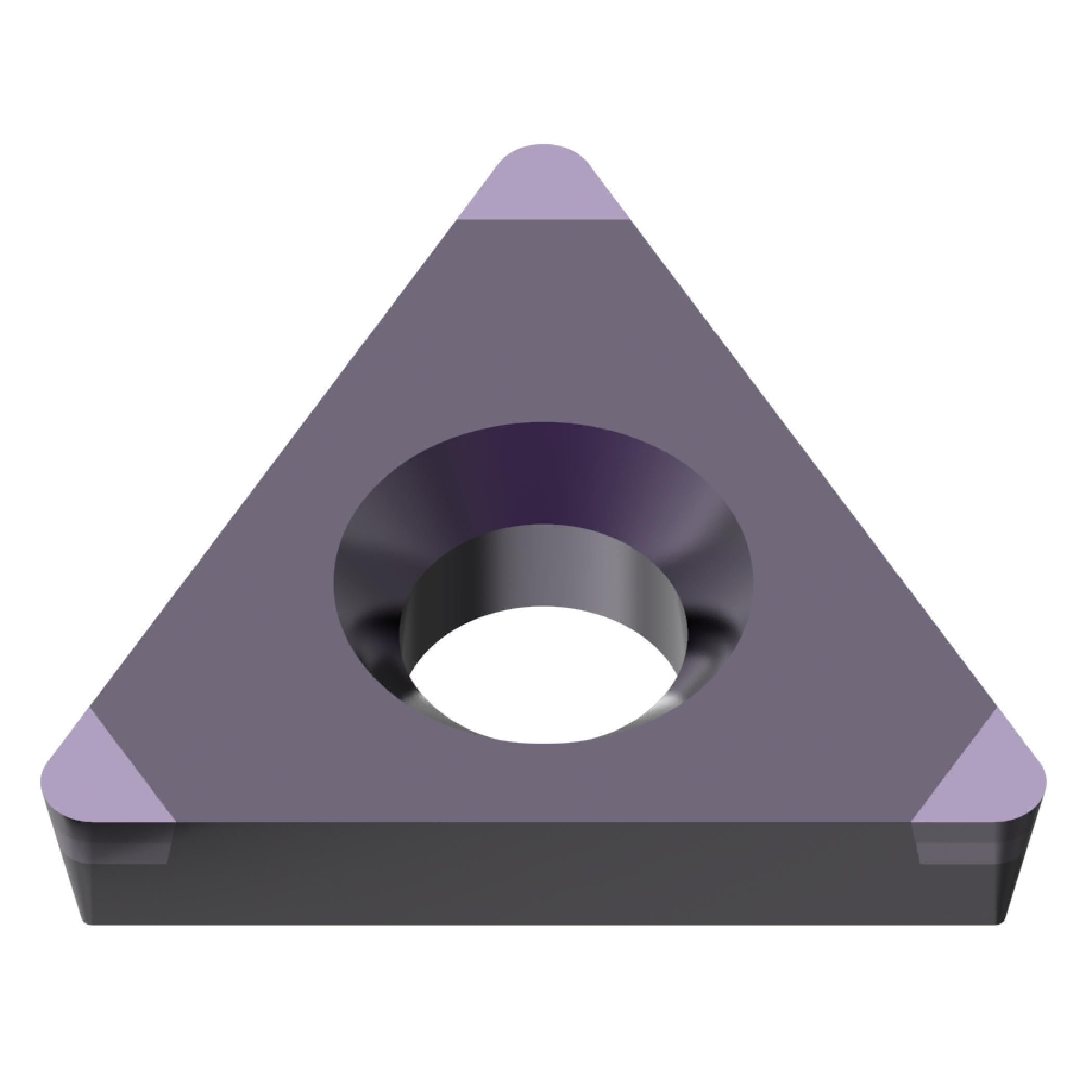

NP-TPGB321-GH3 BC8110 CBN TURNING INSERT
NP-TPGB321-GH3 BC8110 CBN TURNING INSERT
MIT10563922
10563922
116.52
/ EA
http://schema.org/OutOfStock
/Product/MIT10563922
- Chipbreaker: Flat Top
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.173 in
- Included Angle: 60 deg
- Inscribed Circle: 9.525 mm
- Insert Style: TPGB
- ISO Code: NP-TPGB160304GH3 BC8110
- Material: Coated CBN
- Rake: Positive
- Relief Angle: 11 deg
- Shape: Triangle
- Thickness: 3.18 mm
- Type: 3-Corner
- ANSI Code: NP-TPGB321-GH3 BC8110
- Has Attributes: Yes
- Has Image: Yes
- Length: 16.5 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8110
- Application
For Continuous-Light Interrupted Machining
