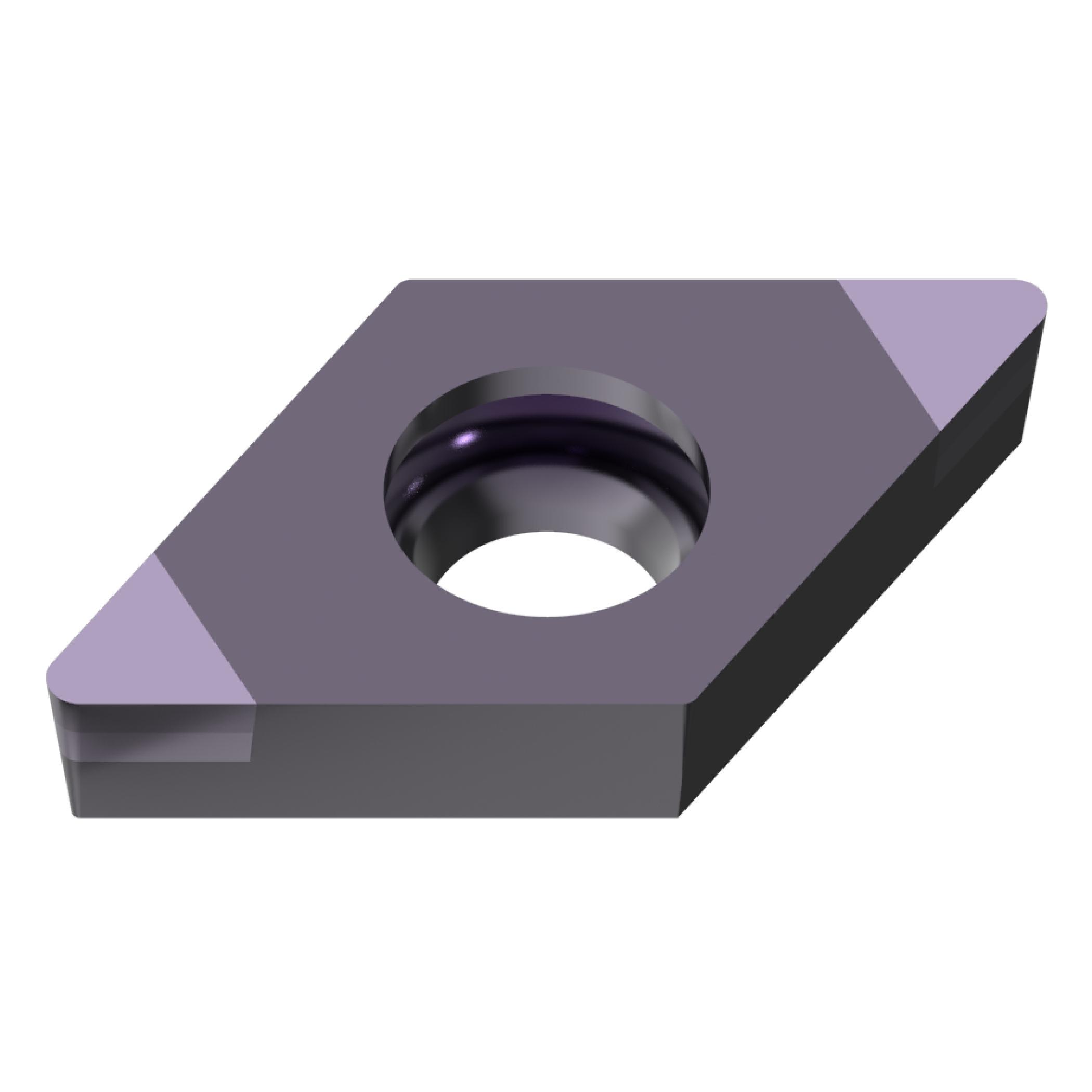

NP-DCGW32.51-GH2 BC8110 TURNING INSERT
NP-DCGW32.51-GH2 BC8110 TURNING INSERT
MIT10563847
10563847
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10563847
- Chipbreaker: GH
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Included Angle: 55 deg
- Inscribed Circle: 9.525 mm
- Insert Style: DCGW
- ISO Code: NP-DCGW11T304GH2 BC8110
- Material: Carbon
- Rake: Negative
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 3.97 mm
- Type: Negative
- ANSI Code: NP-DCGW32.51-GH2
- For Use On: Cast Iron
- Has Attributes: Yes
- Has Image: Yes
- Length: 11.63 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8110
- Application
For Continuous-Light Interrupted Machining
