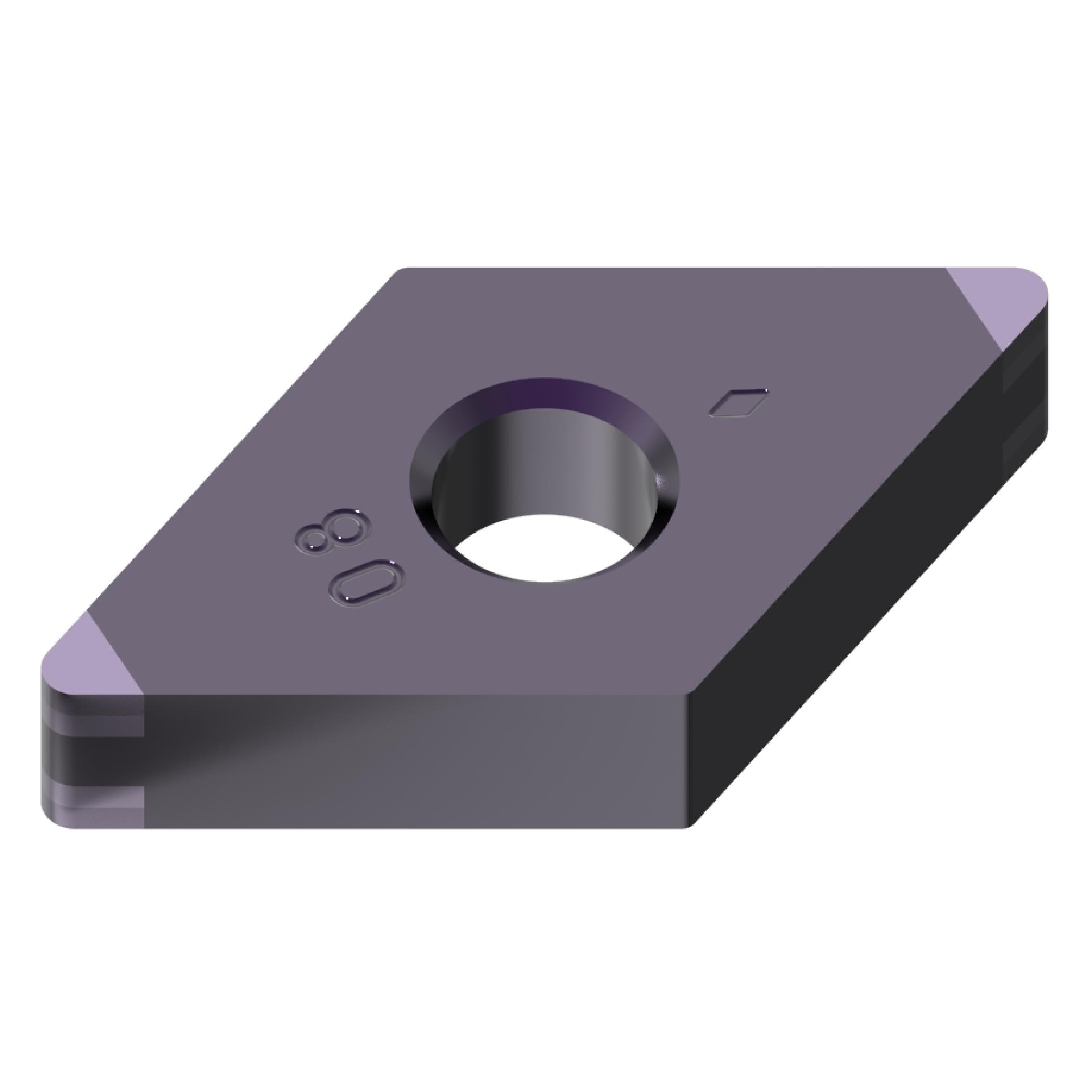

NP-DNGA432-GH4 BC8110 CBN TURNING INSERT
NP-DNGA432-GH4 BC8110 CBN TURNING INSERT
MIT10563762
10563762
174.22
/ EA
http://schema.org/OutOfStock
/Product/MIT10563762
- Chipbreaker: GH
- Corner Radius: 0.8 mm
- Cutting Direction: Neutral
- Included Angle: 55 deg
- Inscribed Circle: 12.7 mm
- Insert Style: DNGA
- ISO Code: NP-DNGA150408GH4 BC8110
- Material: Carbon
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Rhombic
- Thickness: 4.76 mm
- Type: Negative
- ANSI Code: NP-DNGA432-GH4
- For Use On: Cast Iron
- Has Attributes: Yes
- Has Image: Yes
- Length: 15.5 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8110
- Application
For Continuous-Light Interrupted Machining
