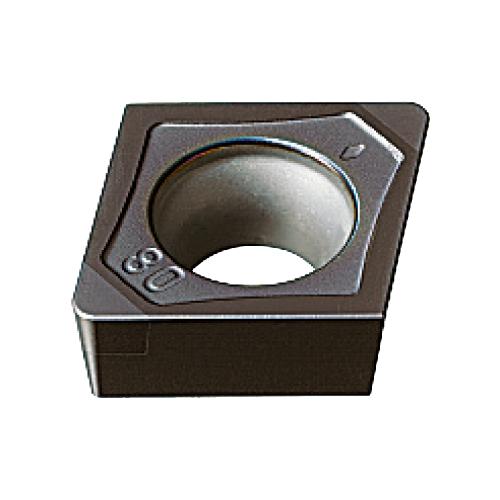

NP-CCGW32.51-FSWS2 BC8110 TURNING INSERT
NP-CCGW32.51-FSWS2 BC8110 TURNING INSERT
MIT10563700
10563700
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10563700
- Chipbreaker: FS
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Included Angle: 80 deg
- Inscribed Circle: 9.525 mm
- Insert Style: CCGW
- ISO Code: NP-CCGW09T304FSWS2 BC8110
- Material: Carbon
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 3.97 mm
- Type: Positive
- ANSI Code: NP-CCGW32.51-FSWS2
- For Use On: Steel
- Has Attributes: Yes
- Has Image: Yes
- Length: 9.67 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8110
- Application
For Continuous Machining
