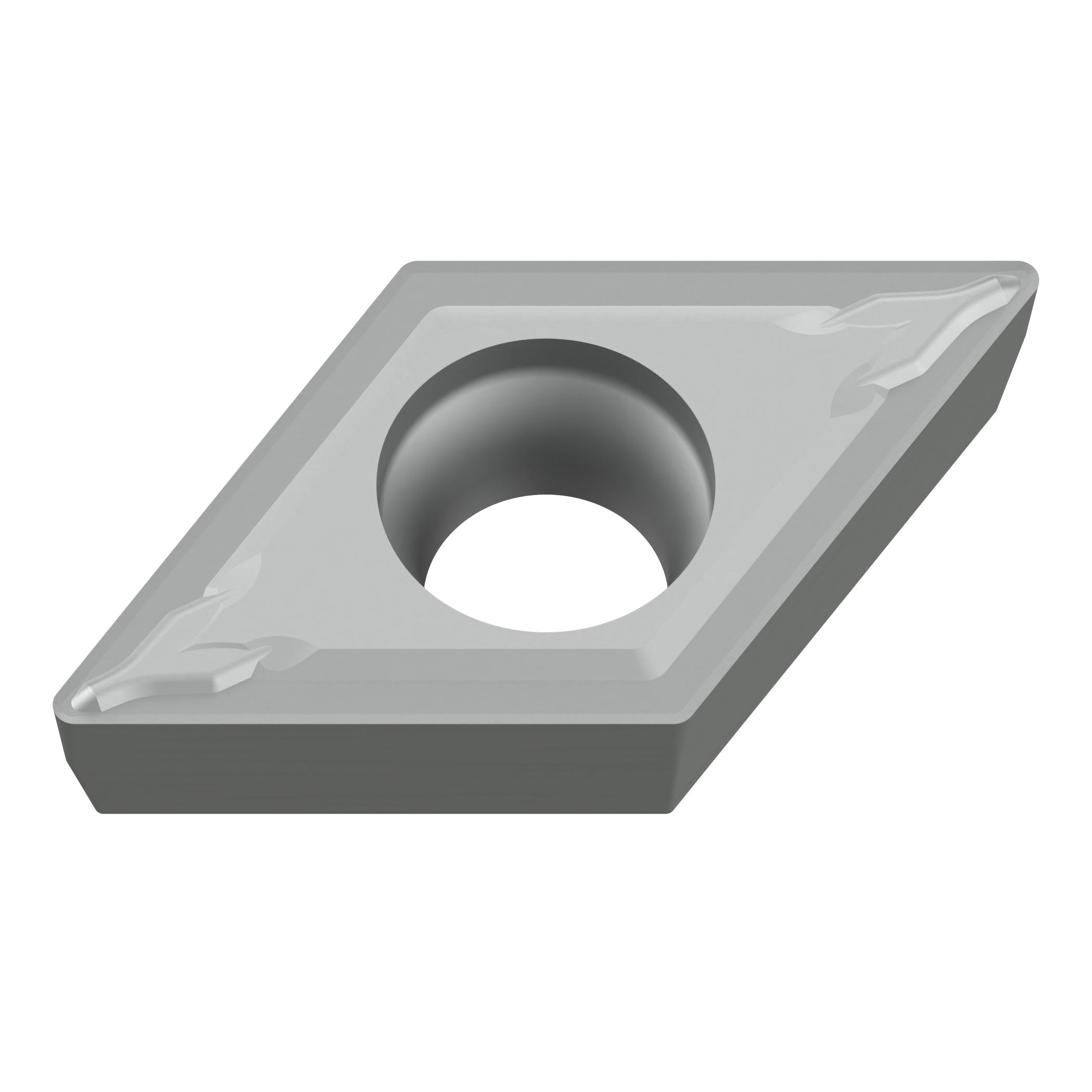

DCMT21.51LS DCMT070204-LS MT9005 INSERT
DCMT21.51LS DCMT070204-LS MT9005 INSERT
MIT10561430
10561430
13.67
/ EA
http://schema.org/OutOfStock
/Product/MIT10561430
- Chipbreaker: LS
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.11 in
- Included Angle: 55 deg
- Inscribed Circle: 6.35 mm
- Insert Style: DCMT
- ISO Code: DCMT070204-LS MT9005
- Material: Carbide
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 2.38 mm
- Type: Solid
- ANSI Code: DCMT21.51LS
- Has Attributes: Yes
- Has Image: Yes
- Length: 7.75 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MT9005
- Application
For Difficult-to-cut Materials
