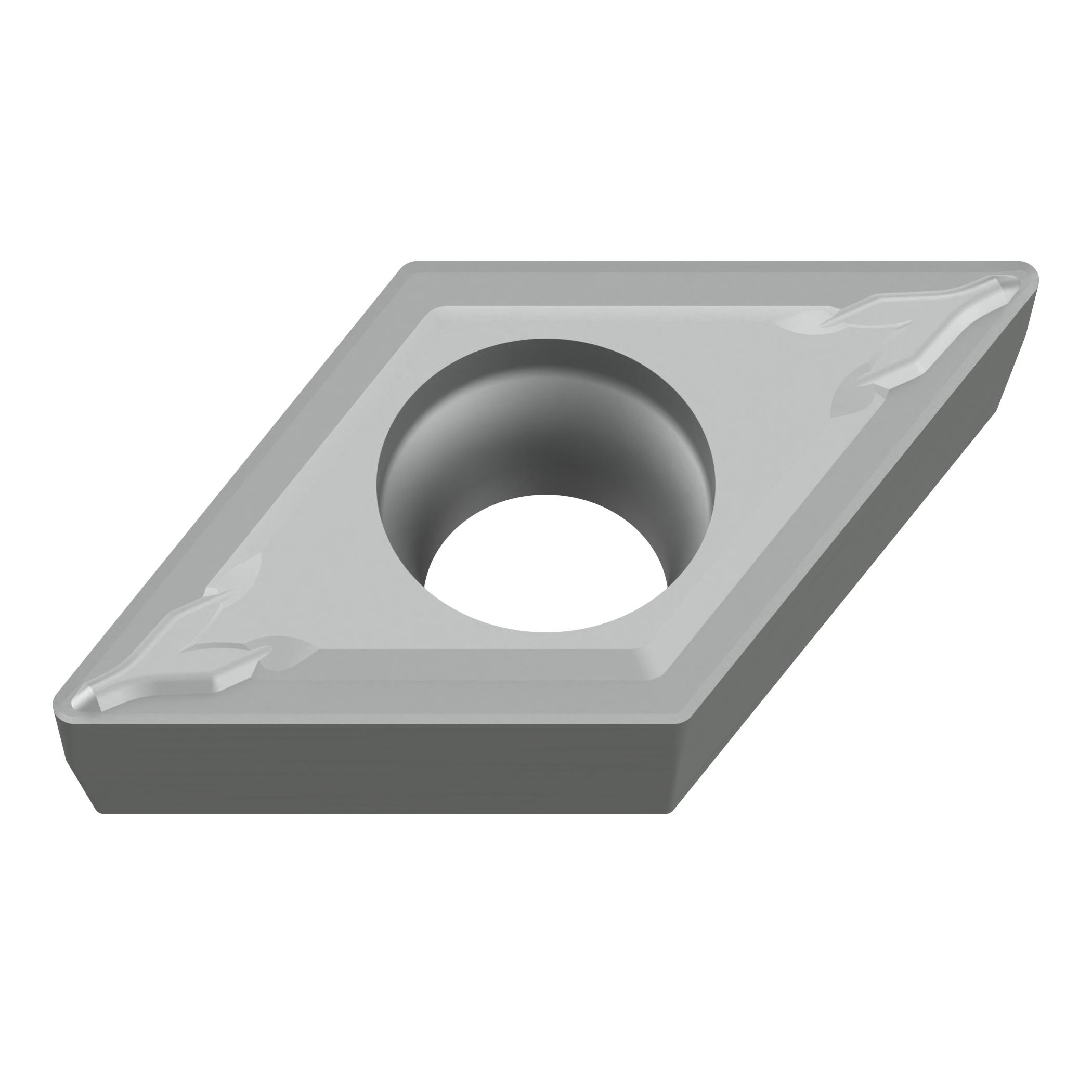

DCMT32.50.5LS MT9005 INSERT

DCMT32.50.5LS MT9005 INSERT

MIT10561379 10561379
15.19 / EA
http://schema.org/OutOfStock
DCMT32.50.5LS MT9005 INSERT
  • Chipbreaker: LS
  • Corner Radius: 0.2 mm
  • Cutting Direction: Neutral
  • Hole Diameter: 0.173 in
  • Included Angle: 55 deg
  • Inscribed Circle: 9.525 mm
  • Insert Style: DCMT
  • ISO Code: DCMT11T302-LS MT9005
  • Material: Carbide
  • Rake: Positive
  • Relief Angle: 7 deg
  • Shape: Rhombic
  • Thickness: 3.97 mm
  • Type: Solid
  • ANSI Code: DCMT32.50.5LS
  • Has Attributes: Yes
  • Has Image: Yes
  • Length: 11.63 mm
  • Manufacturer Name: Mitsubishi Materials USA Corp
  • Manufacturer's Grade: MT9005
QTY
Add to List
  • Application
For Difficult-to-cut Materials
