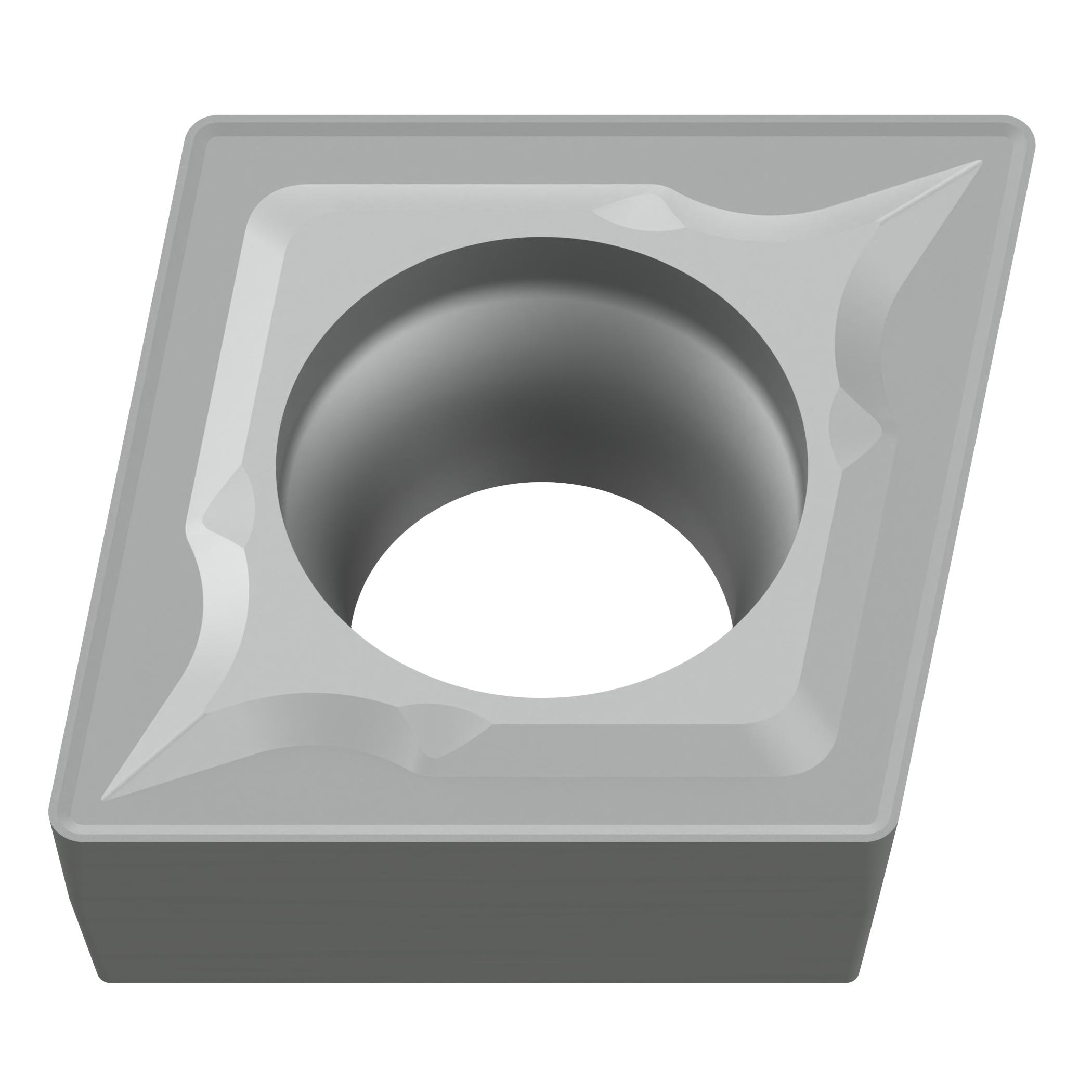

CCMT32.51MS CCMT09T304-MS MT9005 INSERT
CCMT32.51MS CCMT09T304-MS MT9005 INSERT
MIT10561355
10561355
12.59
/ EA
http://schema.org/OutOfStock
/Product/MIT10561355
- Chipbreaker: MS
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.173 in
- Included Angle: 80 deg
- Inscribed Circle: 9.525 mm
- Insert Style: CCMT
- ISO Code: CCMT09T304-MS MT9005
- Material: Carbide
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 3.97 mm
- Type: Solid
- ANSI Code: CCMT32.51MS
- Has Attributes: Yes
- Has Image: Yes
- Length: 9.67 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MT9005
- Application
For Difficult-to-cut Materials
