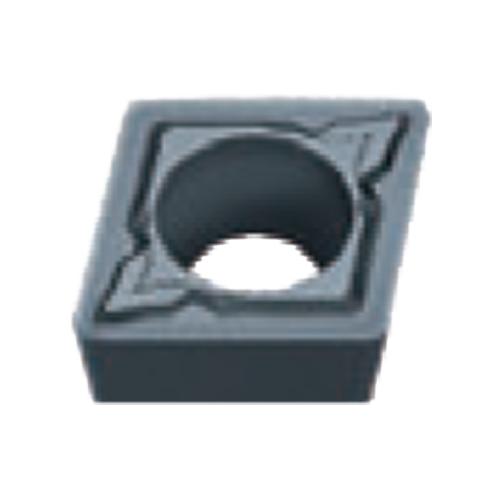

CCMT32.52LS CCMT09T308-LS MP9015 INSERT
CCMT32.52LS CCMT09T308-LS MP9015 INSERT
MIT10561003
10561003
14.17
/ EA
http://schema.org/OutOfStock
/Product/MIT10561003
- Chipbreaker: LS
- Corner Radius: 0.8 mm
- Cutting Direction: Neutral
- Included Angle: 80 deg
- Inscribed Circle: 9.525 mm
- Insert Style: CCMT
- ISO Code: CCMT09T308-LS MP9015
- Material: Carbide
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 3.97 mm
- Type: Solid
- ANSI Code: CCMT32.52LS
- Has Attributes: Yes
- Has Image: Yes
- Length: 9.67 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MP9015
- Application
For Difficult-to-cut Materials
