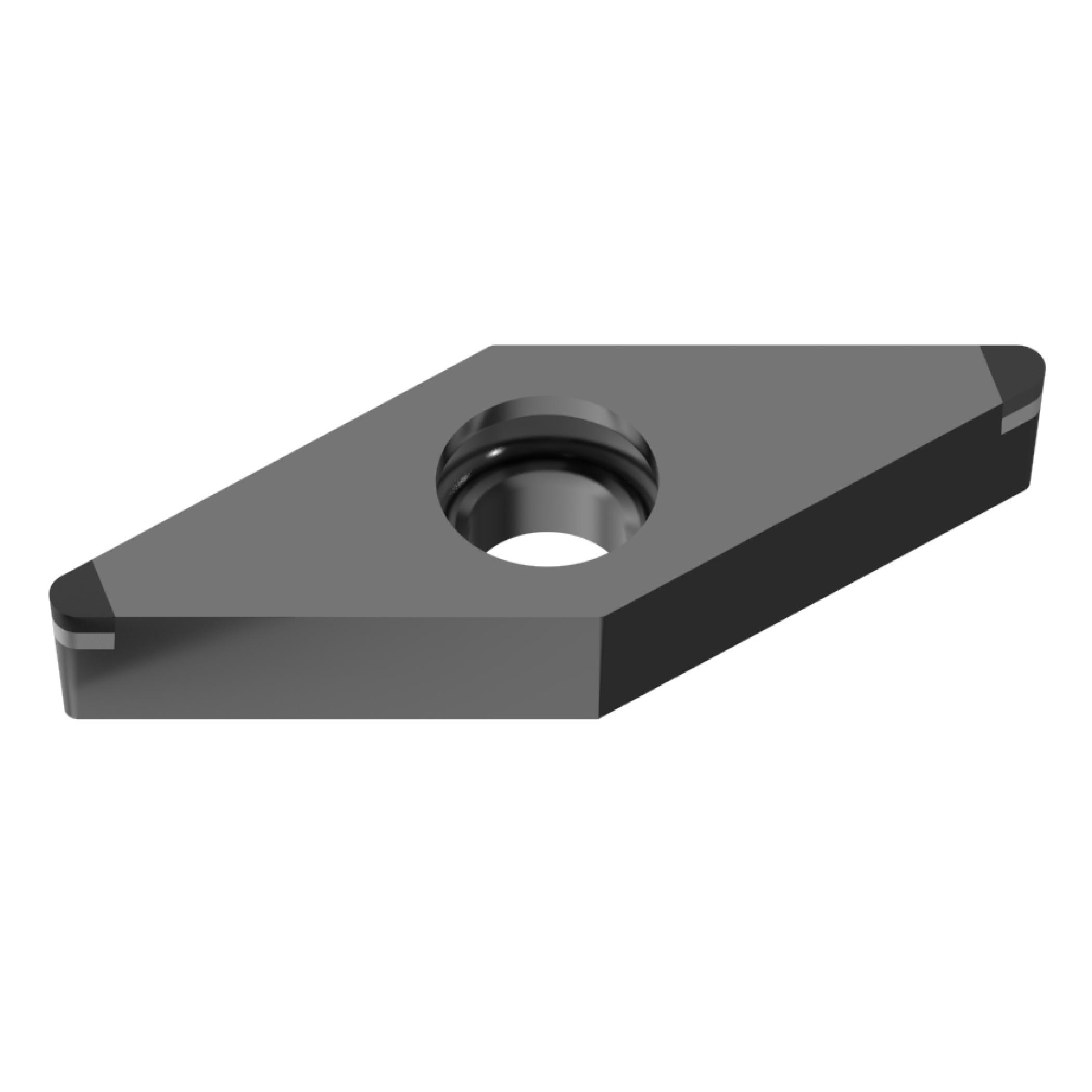

NP-VBGW330.5-GS2 BC8105 CBN INSERT
NP-VBGW330.5-GS2 BC8105 CBN INSERT
MIT10552254
10552254
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10552254
- Chipbreaker: SV
- Corner Radius: 0.007 in
- Cutting Direction: Neutral
- Hole Diameter: 0.174 in
- Included Angle: 35 deg
- Inscribed Circle: 0.37 in
- Insert Style: VBGW
- ISO Code: NP-VBGW160402GS2 BC8105
- Rake: Negative
- Relief Angle: 5 deg
- Shape: Rhombic
- Thickness: 0.18 in
- Type: 2-Corner
- ANSI Code: NP-VBGW330.5-GS2 BC8105
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.65 in
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: US735
- Application
For Continuous-Light Interrupted Machining
