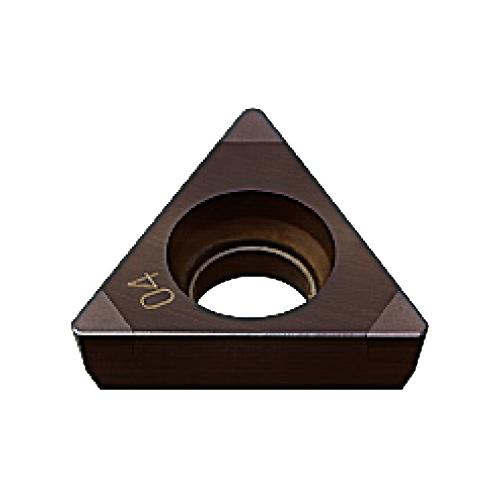

NP-TPGB220.5-GS3 BC8105 CBN INSERT
NP-TPGB220.5-GS3 BC8105 CBN INSERT
MIT10552179
10552179
116.52
/ EA
http://schema.org/OutOfStock
/Product/MIT10552179
- Chipbreaker: GS
- Corner Radius: 0.2 mm
- Cutting Direction: Neutral
- Included Angle: 60 deg
- Inscribed Circle: 6.35 mm
- Insert Style: TPGB
- ISO Code: NP-TPGB110302GS3 BC8105
- Material: Carbon
- Rake: Positive
- Relief Angle: 11 deg
- Shape: Triangle
- Thickness: 3.18 mm
- Type: Positive
- ANSI Code: NP-TPGB220.5-GS3
- For Use On: Cast Iron
- Has Attributes: Yes
- Has Image: Yes
- Length: 11 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8105
- Application
For Continuous-Light Interrupted Machining
