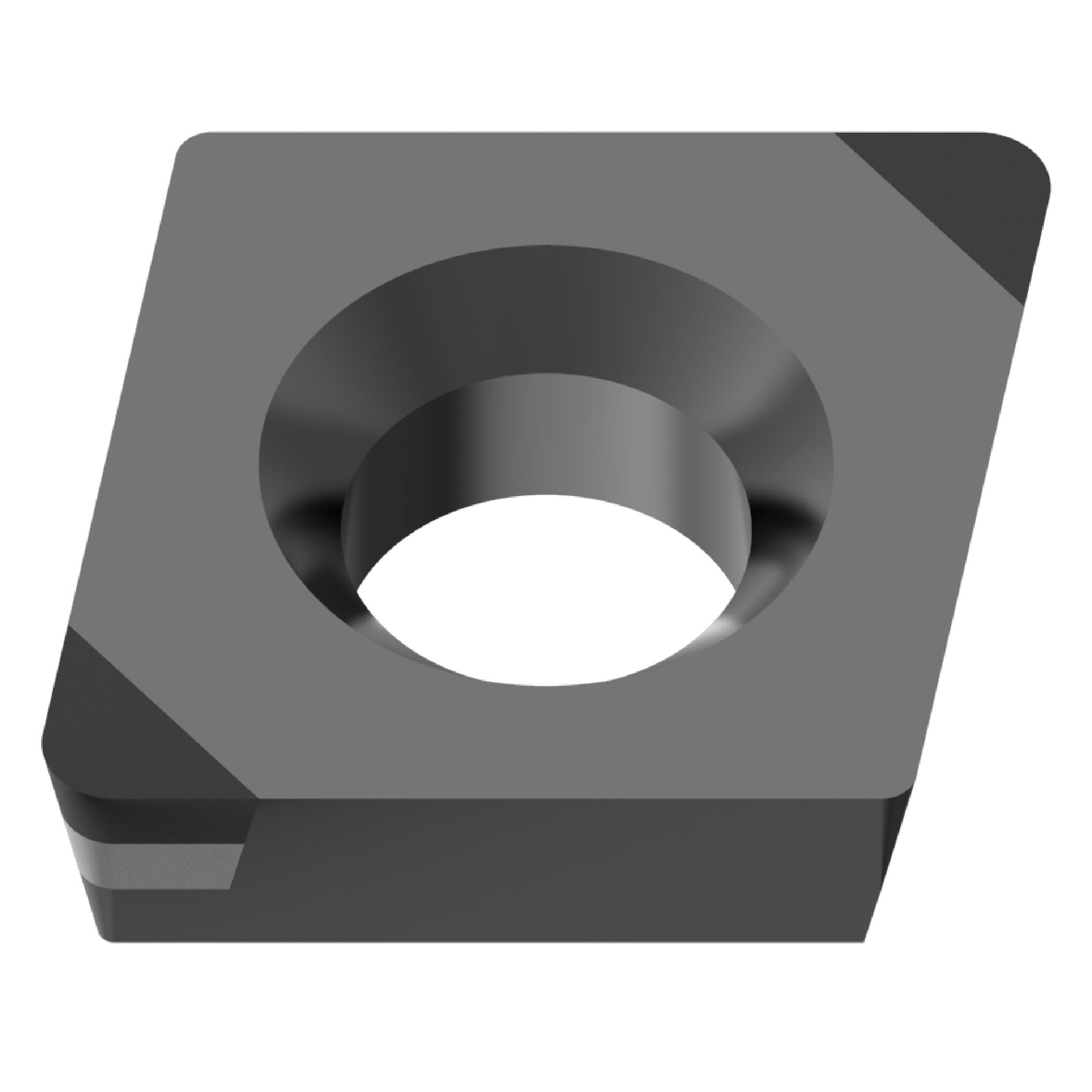

NP-CPGB322-GS2 BC8105 CBN INSERT
NP-CPGB322-GS2 BC8105 CBN INSERT
MIT10552001
10552001
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10552001
- Chipbreaker: Flat Top
- Corner Radius: 0.8 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.177 in
- Included Angle: 80 deg
- Inscribed Circle: 9.525 mm
- Insert Style: CPGB
- ISO Code: NP-CPGB090308GS2 BC8105
- Material: Coated CBN
- Rake: Negative
- Relief Angle: 11 deg
- Shape: Rhombic
- Thickness: 3.18 mm
- Type: 2-Corner
- ANSI Code: NP-CPGB322-GS2 BC8105
- Has Attributes: Yes
- Has Image: Yes
- Length: 9.67 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8105
- Application
For Continuous-Light Interrupted Machining
