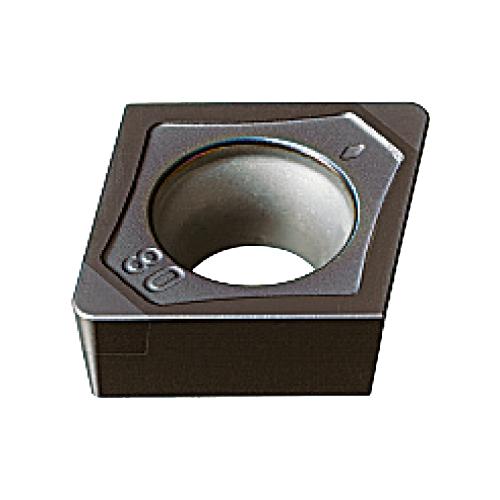

NP-CCGW32.52-GSWS2 CBN TURNING INSERT
NP-CCGW32.52-GSWS2 CBN TURNING INSERT
MIT10551851
10551851
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10551851
- Chipbreaker: GS
- Corner Radius: 0.8 mm
- Cutting Direction: Neutral
- Included Angle: 80 deg
- Inscribed Circle: 9.525 mm
- Insert Style: CCGW
- ISO Code: NP-CCGW09T308GSWS2 BC8105
- Material: Carbon
- Rake: Negative
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 3.97 mm
- Type: Negative
- ANSI Code: NP-CCGW32.52-GSWS2
- For Use On: Steel
- Has Attributes: Yes
- Has Image: Yes
- Length: 9.67 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8105
- Application
For Continuous-Light Interrupted Machining
