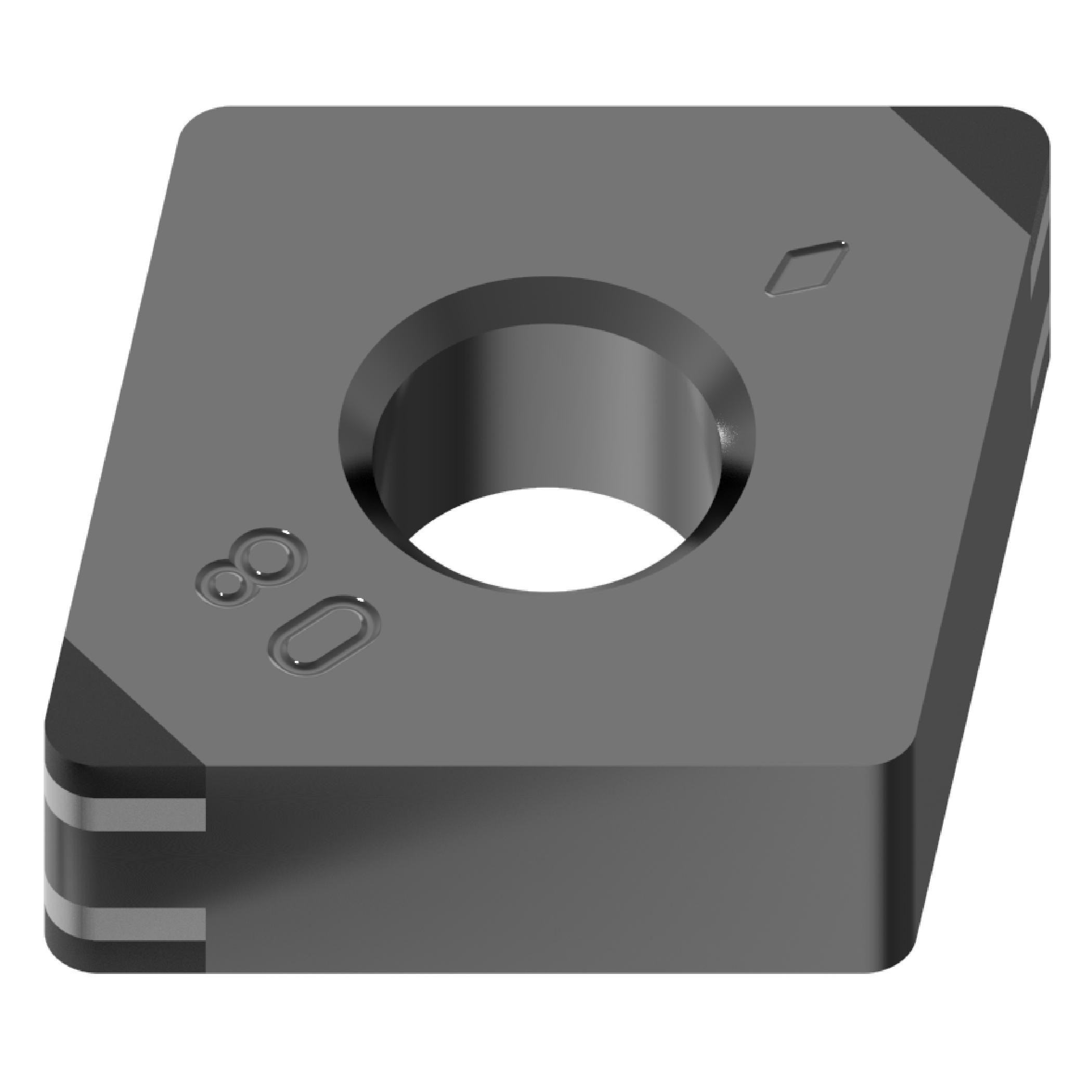

NP-CNGA431-FS4 BC8105 CBN INSERT
NP-CNGA431-FS4 BC8105 CBN INSERT
MIT10551219
10551219
174.22
/ EA
http://schema.org/OutOfStock
/Product/MIT10551219
- Chipbreaker: FS
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Included Angle: 80 deg
- Inscribed Circle: 12.7 mm
- Insert Style: CNGA
- ISO Code: NP-CNGA120404FS4 BC8105
- Material: Carbon
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Rhombic
- Thickness: 4.76 mm
- Type: Negative
- ANSI Code: NP-CNGA431-FS4
- For Use On: Cast Iron
- Has Attributes: Yes
- Has Image: Yes
- Length: 12.9 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8105
- Application
For Continuous Machining
