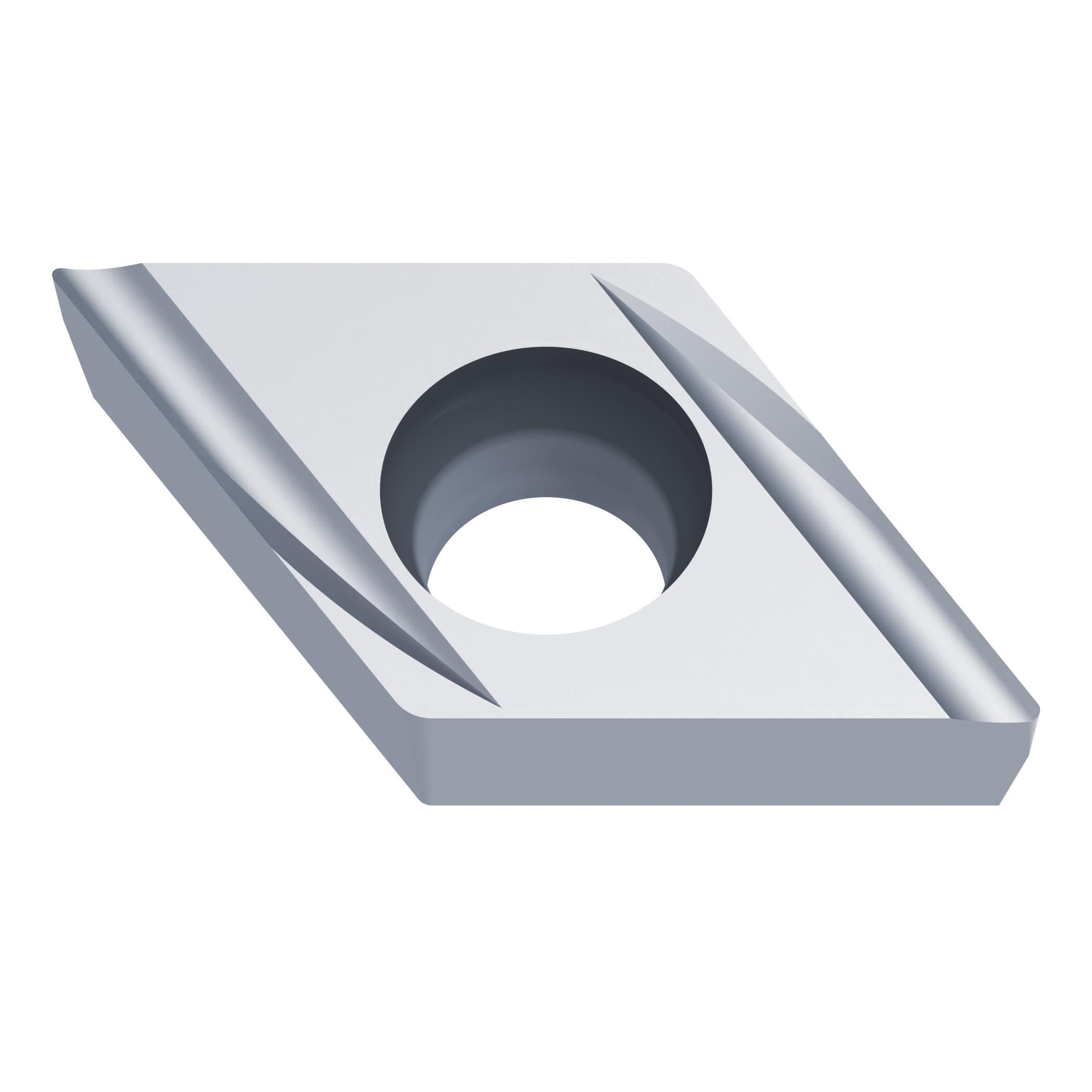

DCGT32.51MRSN MS6015 INSERT
DCGT32.51MRSN MS6015 INSERT
MIT10541043
10541043
17.83
/ EA
http://schema.org/OutOfStock
/Product/MIT10541043
- Chipbreaker: SN
- Corner Radius: 0.4 mm
- Cutting Direction: Right Hand
- Included Angle: 55 deg
- Inscribed Circle: 9.525 mm
- Insert Style: DCGT
- ISO Code: DCGT11T304MR-SN MS6015
- Material: Carbide
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 3.97 mm
- Type: Solid
- ANSI Code: DCGT32.51MRSN
- Has Attributes: Yes
- Has Image: Yes
- Length: 11.63 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MS6015
- Application
For Medium Cutting
