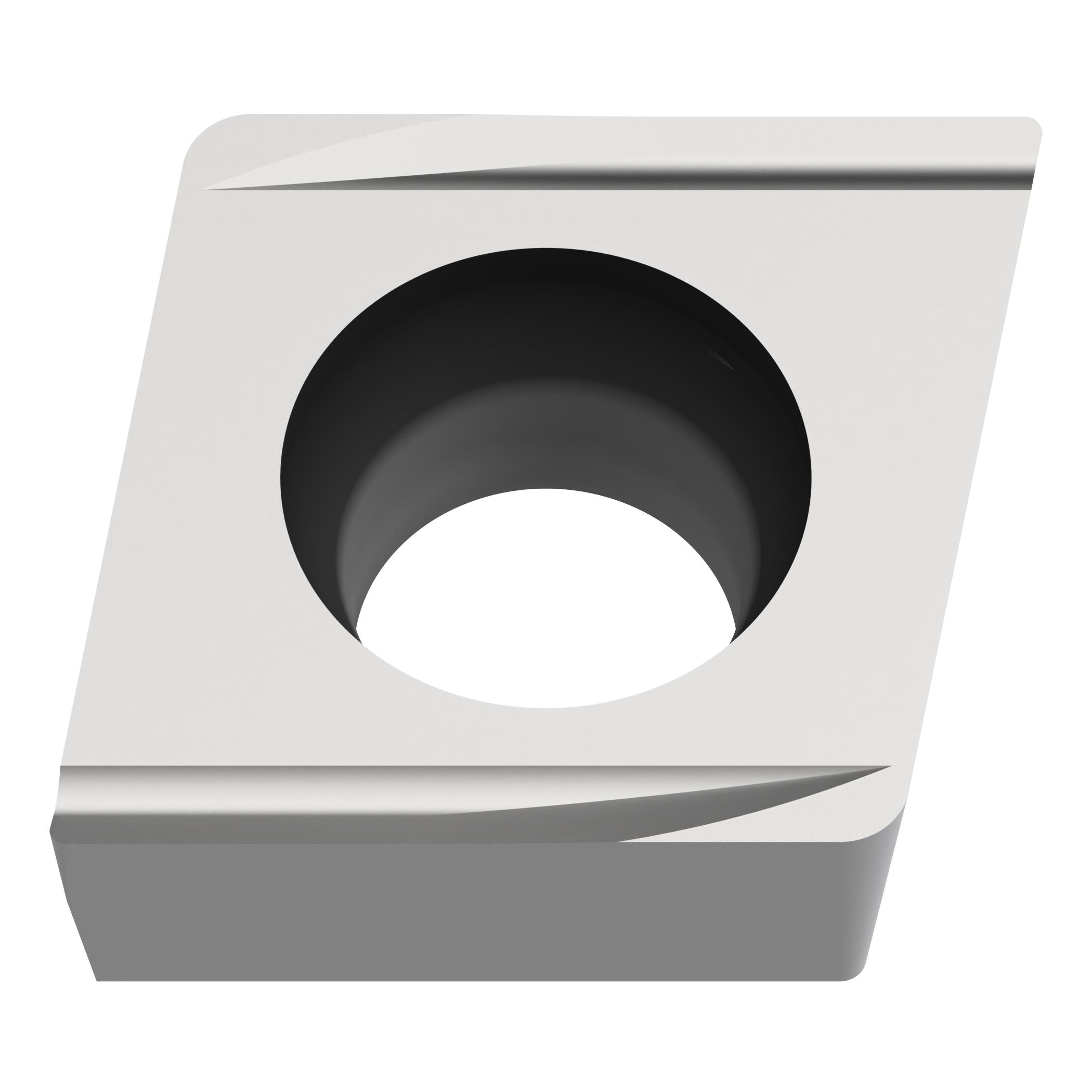

CCGT32.50.2MRSS MS6015 INSERT
CCGT32.50.2MRSS MS6015 INSERT
MIT10540893
10540893
16.10
/ EA
http://schema.org/OutOfStock
/Product/MIT10540893
- Chipbreaker: SS
- Corner Radius: 0.1 mm
- Cutting Direction: Right Hand
- Hole Diameter: 0.173 in
- Included Angle: 80 deg
- Inscribed Circle: 9.525 mm
- Insert Style: CCGT
- ISO Code: CCGT09T301MR-SS MS6015
- Material: Carbide
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 3.97 mm
- Type: Solid
- ANSI Code: CCGT32.50.2MRSS
- Has Attributes: Yes
- Has Image: Yes
- Length: 9.67 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MS6015
- Application
For Light Cutting
