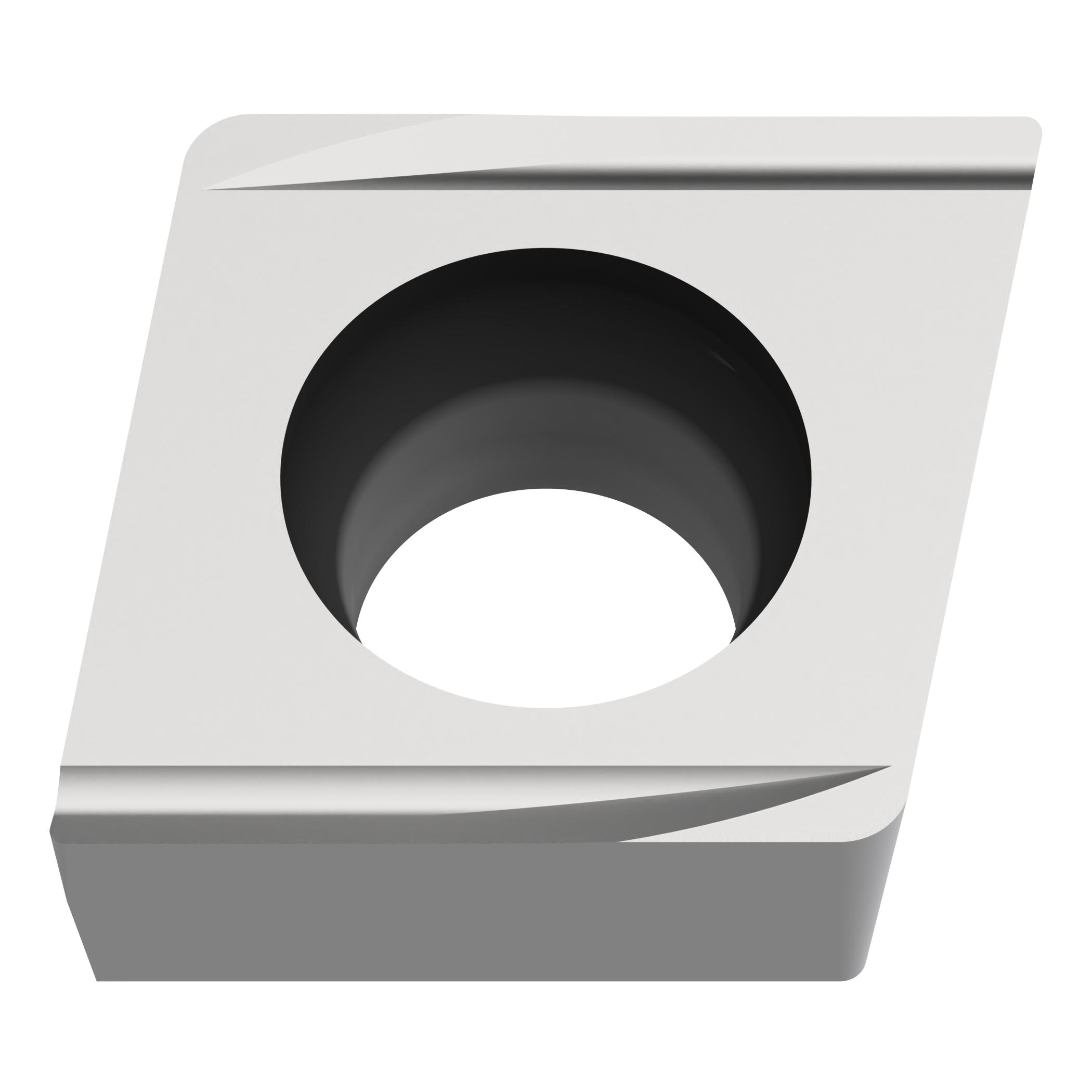

CCGT21.50.2MRSS MS6015 INSERT

CCGT21.50.2MRSS MS6015 INSERT

MIT10540855 10540855
13.66 / EA
http://schema.org/OutOfStock
CCGT21.50.2MRSS MS6015 INSERT
  • Chipbreaker: SS
  • Corner Radius: 0.1 mm
  • Cutting Direction: Right Hand
  • Hole Diameter: 0.11 in
  • Included Angle: 80 deg
  • Inscribed Circle: 6.35 mm
  • Insert Style: CCGT
  • ISO Code: CCGT060201MR-SS MS6015
  • Material: Carbide
  • Rake: Positive
  • Relief Angle: 7 deg
  • Shape: Rhombic
  • Thickness: 2.38 mm
  • Type: Solid
  • ANSI Code: CCGT21.50.2MRSS
  • Has Attributes: Yes
  • Has Image: Yes
  • Length: 6.45 mm
  • Manufacturer Name: Mitsubishi Materials USA Corp
  • Manufacturer's Grade: MS6015
QTY
Add to List
  • Application
For Light Cutting
