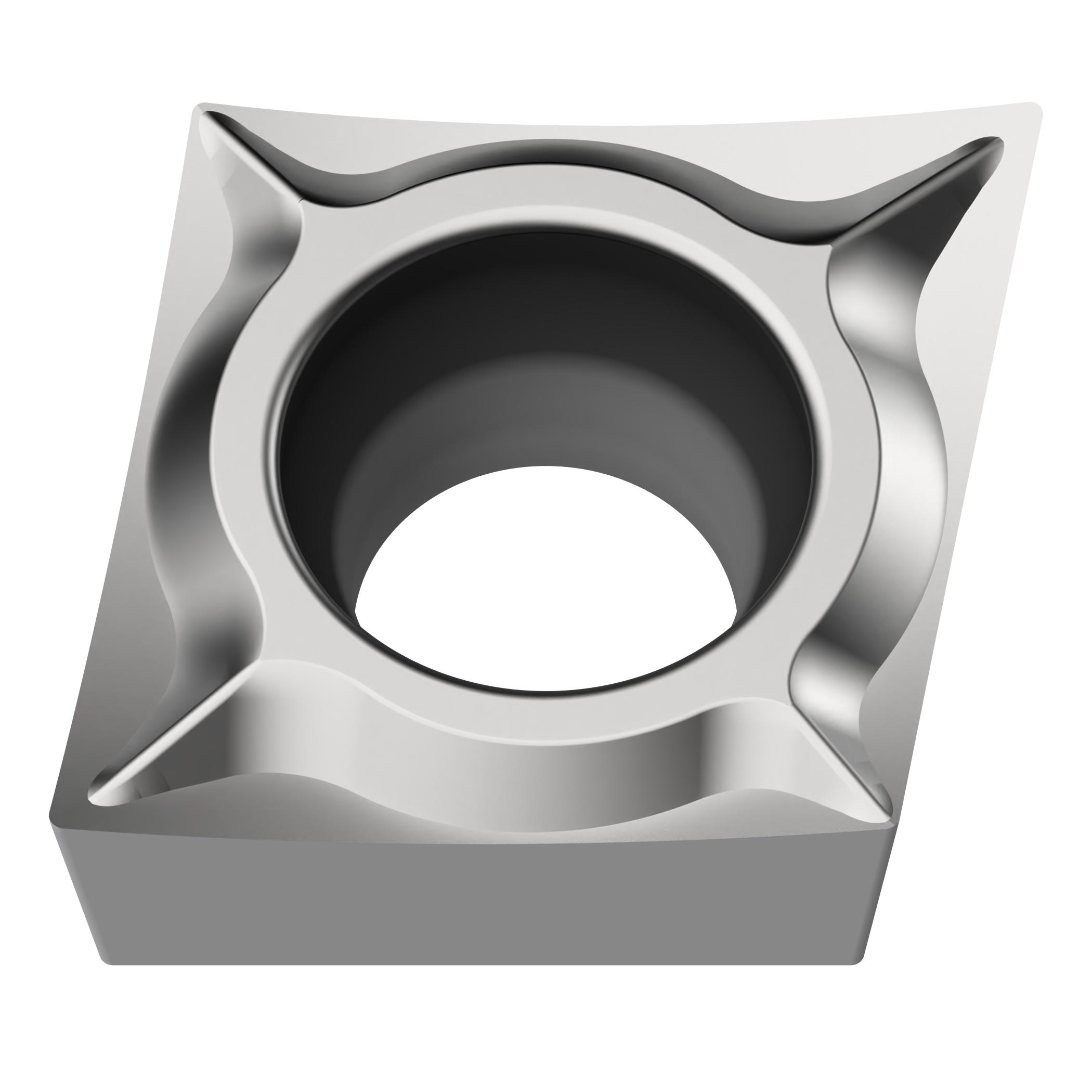

CCGT21.50.2MSMG MS6015 INSERT
CCGT21.50.2MSMG MS6015 INSERT
MIT10540619
10540619
13.66
/ EA
http://schema.org/OutOfStock
/Product/MIT10540619
- Chipbreaker: SMG
- Corner Radius: 0.1 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.11 in
- Included Angle: 80 deg
- Inscribed Circle: 6.35 mm
- Insert Style: CCGT
- ISO Code: CCGT060201M-SMG MS6015
- Material: Carbide
- Rake: Negative
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 2.38 mm
- Type: Solid
- ANSI Code: CCGT21.50.2MSMG
- Has Attributes: Yes
- Has Image: Yes
- Length: 6.45 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MS6015
- Application
For Medium Cutting
