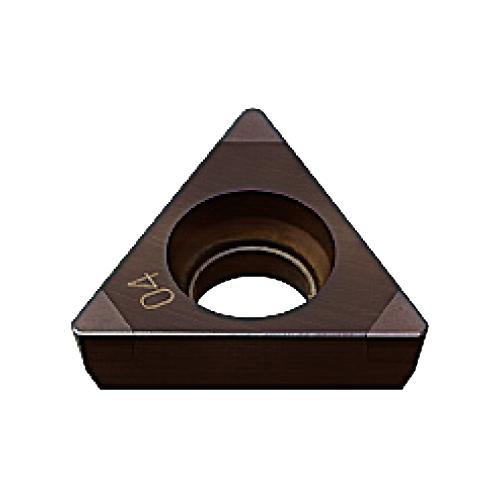

NP-TPGB322-TA3 BC8130 CBN INSERT
NP-TPGB322-TA3 BC8130 CBN INSERT
MIT10539354
10539354
116.52
/ EA
http://schema.org/OutOfStock
/Product/MIT10539354
- Chipbreaker: TA
- Corner Radius: 0.8 mm
- Cutting Direction: Neutral
- Included Angle: 60 deg
- Inscribed Circle: 9.525 mm
- Insert Style: TPGB
- ISO Code: NP-TPGB160308TA3 BC8130
- Material: Carbon
- Rake: Positive
- Relief Angle: 11 deg
- Shape: Triangle
- Thickness: 3.18 mm
- Type: Positive
- ANSI Code: NP-TPGB322-TA3
- For Use On: Cast Iron
- Has Attributes: Yes
- Has Image: Yes
- Length: 16.5 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8130
- Application
For Interrupted Machining
