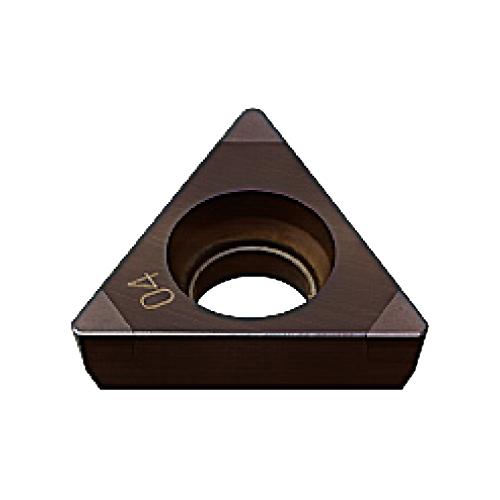

NP-TPGB1.51.51-TA3 BC8130 CBN INSERT
NP-TPGB1.51.51-TA3 BC8130 CBN INSERT
MIT10539224
10539224
116.52
/ EA
http://schema.org/OutOfStock
/Product/MIT10539224
- Chipbreaker: Flat Top
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.09 in
- Included Angle: 60 deg
- Inscribed Circle: 4.76 mm
- Insert Style: TPGB
- ISO Code: NP-TPGB080204TA3 BC8130
- Material: Coated CBN
- Rake: Positive
- Relief Angle: 11 deg
- Shape: Triangle
- Thickness: 2.38 mm
- Type: 3-Corner
- ANSI Code: NP-TPGB1.51.51-TA3 BC8130
- Has Attributes: Yes
- Has Image: Yes
- Length: 8.24 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8130
- Application
For Interrupted Machining
