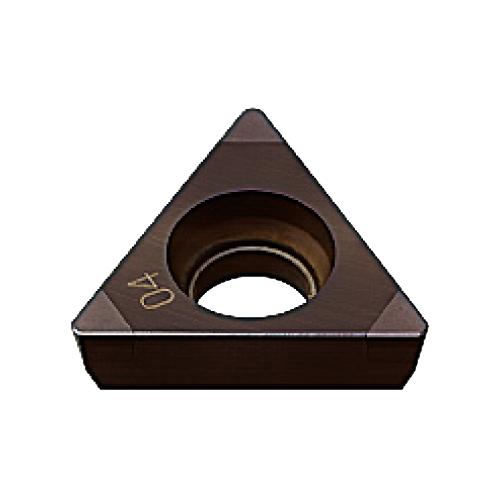

NP-TPGB1.51.52-GA3 BC8130 CBN INSERT
NP-TPGB1.51.52-GA3 BC8130 CBN INSERT
MIT10539217
10539217
116.52
/ EA
http://schema.org/OutOfStock
/Product/MIT10539217
- Chipbreaker: FP
- Corner Radius: 0.031 in
- Cutting Direction: Neutral
- Hole Diameter: 0.094 in
- Included Angle: 60 deg
- Inscribed Circle: 0.18 in
- Insert Style: TPGB
- ISO Code: NP-TPGB080208GA3 BC8130
- Rake: Positive
- Relief Angle: 11 deg
- Shape: Triangle
- Thickness: 0.09 in
- Type: 3-Corner
- ANSI Code: NP-TPGB1.51.52-GA3 BC8130
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.32 in
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: MP3025
- Application
For Continuous-Light Interrupted Machining
