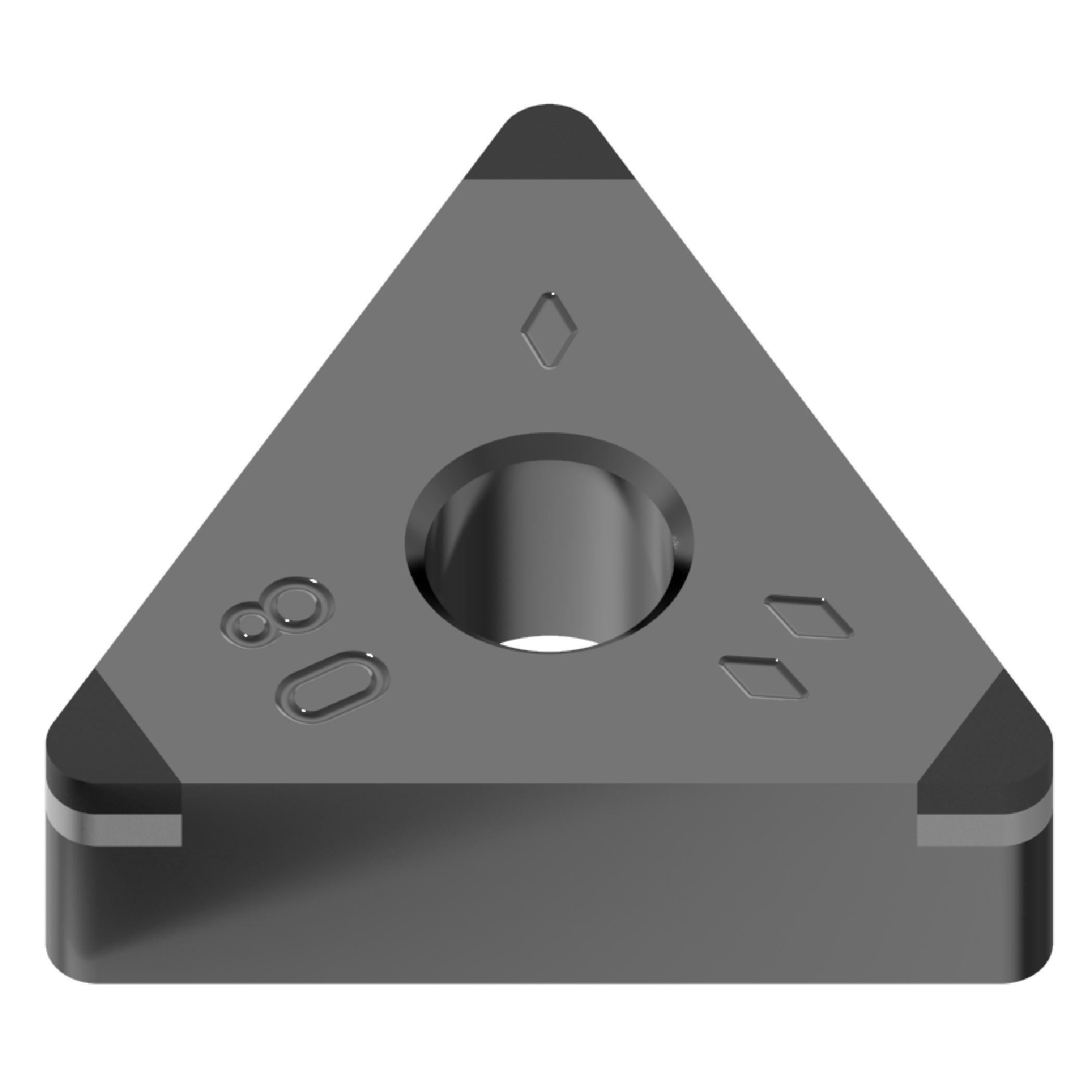

NP-TNGA331-TH3 BC8130 CBN INSERT
NP-TNGA331-TH3 BC8130 CBN INSERT
MIT10539088
10539088
116.52
/ EA
http://schema.org/OutOfStock
/Product/MIT10539088
- Chipbreaker: Flat Top
- Corner Radius: 0.4 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.15 in
- Included Angle: 60 deg
- Inscribed Circle: 9.525 mm
- Insert Style: TNGA
- ISO Code: NP-TNGA160404TH3 BC8130
- Material: Coated CBN
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Triangle
- Thickness: 4.76 mm
- Type: 3-Corner
- ANSI Code: NP-TNGA331-TH3 BC8130
- Has Attributes: Yes
- Has Image: Yes
- Length: 16.5 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8130
- Application
For Interrupted Machining
