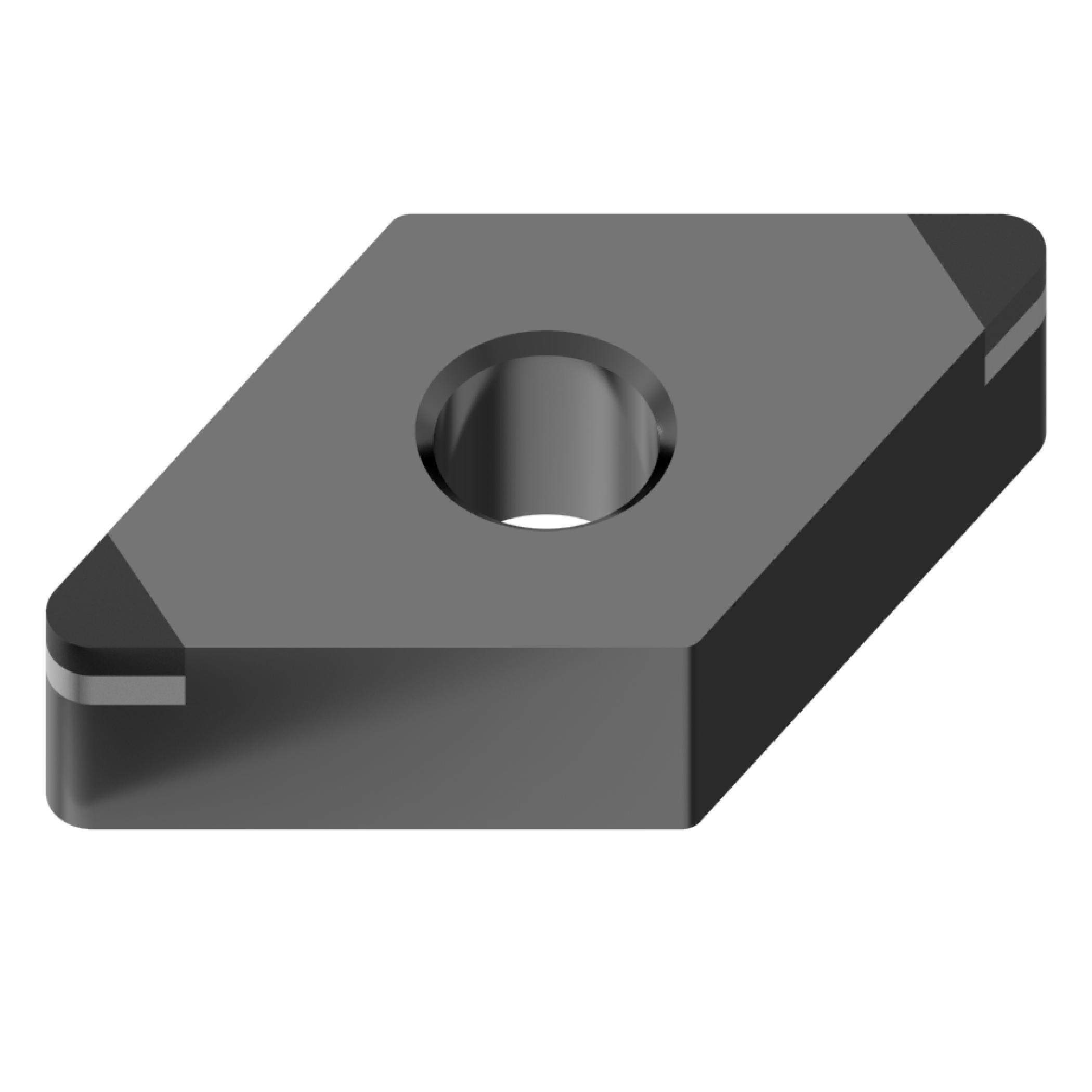

NP-DNGA332-GA2 BC8130 CBN INSERT
NP-DNGA332-GA2 BC8130 CBN INSERT
MIT10538555
10538555
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10538555
- Chipbreaker: Flat Top
- Corner Radius: 0.8 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.15 in
- Included Angle: 55 deg
- Inscribed Circle: 9.525 mm
- Insert Style: DNGA
- ISO Code: NP-DNGA110408GA2 BC8130
- Material: Coated CBN
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Rhombic
- Thickness: 4.76 mm
- Type: 2-Corner
- ANSI Code: NP-DNGA332-GA2 BC8130
- Has Attributes: Yes
- Has Image: Yes
- Length: 11.63 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8130
- Application
For Continuous-Light Interrupted Machining
