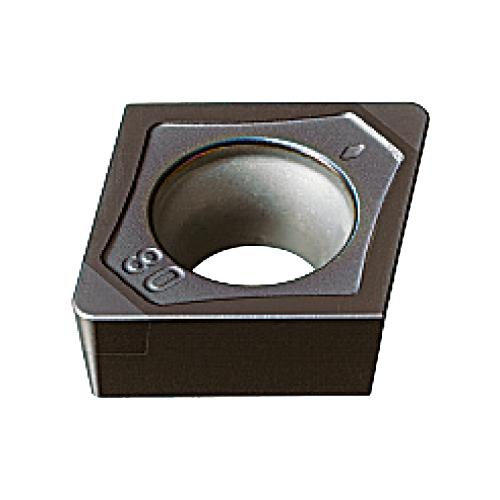

NP-CPGB323-GA2 BC8130 CBN INSERT
NP-CPGB323-GA2 BC8130 CBN INSERT
MIT10538517
10538517
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10538517
- Chipbreaker: GA
- Corner Radius: 1.2 mm
- Cutting Direction: Neutral
- Included Angle: 80 deg
- Inscribed Circle: 9.525 mm
- Insert Style: CPGB
- ISO Code: NP-CPGB090312GA2 BC8130
- Material: Carbon
- Rake: Negative
- Relief Angle: 11 deg
- Shape: Rhombic
- Thickness: 3.18 mm
- Type: Negative
- ANSI Code: NP-CPGB323-GA2
- For Use On: Steel
- Has Attributes: Yes
- Has Image: Yes
- Length: 9.67 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8130
- Application
For Continuous Machining
