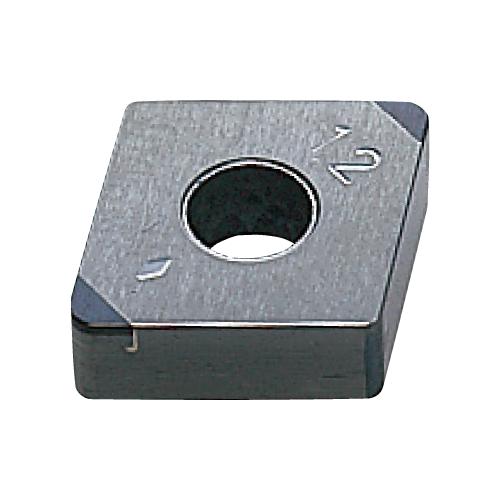

NP-CNGA432-GAWS2 BC8130 CBN INSERT
NP-CNGA432-GAWS2 BC8130 CBN INSERT
MIT10538197
10538197
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10538197
- Chipbreaker: Flat Top
- Corner Radius: 0.8 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.203 in
- Included Angle: 80 deg
- Inscribed Circle: 12.7 mm
- Insert Style: CNGA
- ISO Code: NP-CNGA120408GAWS2 BC8130
- Material: Coated CBN
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Rhombic
- Thickness: 4.76 mm
- Type: 2-Corner
- ANSI Code: NP-CNGA432-GAWS2 BC8130
- Has Attributes: Yes
- Has Image: Yes
- Length: 12.9 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8130
- Application
For Continuous-Light Interrupted Machining
