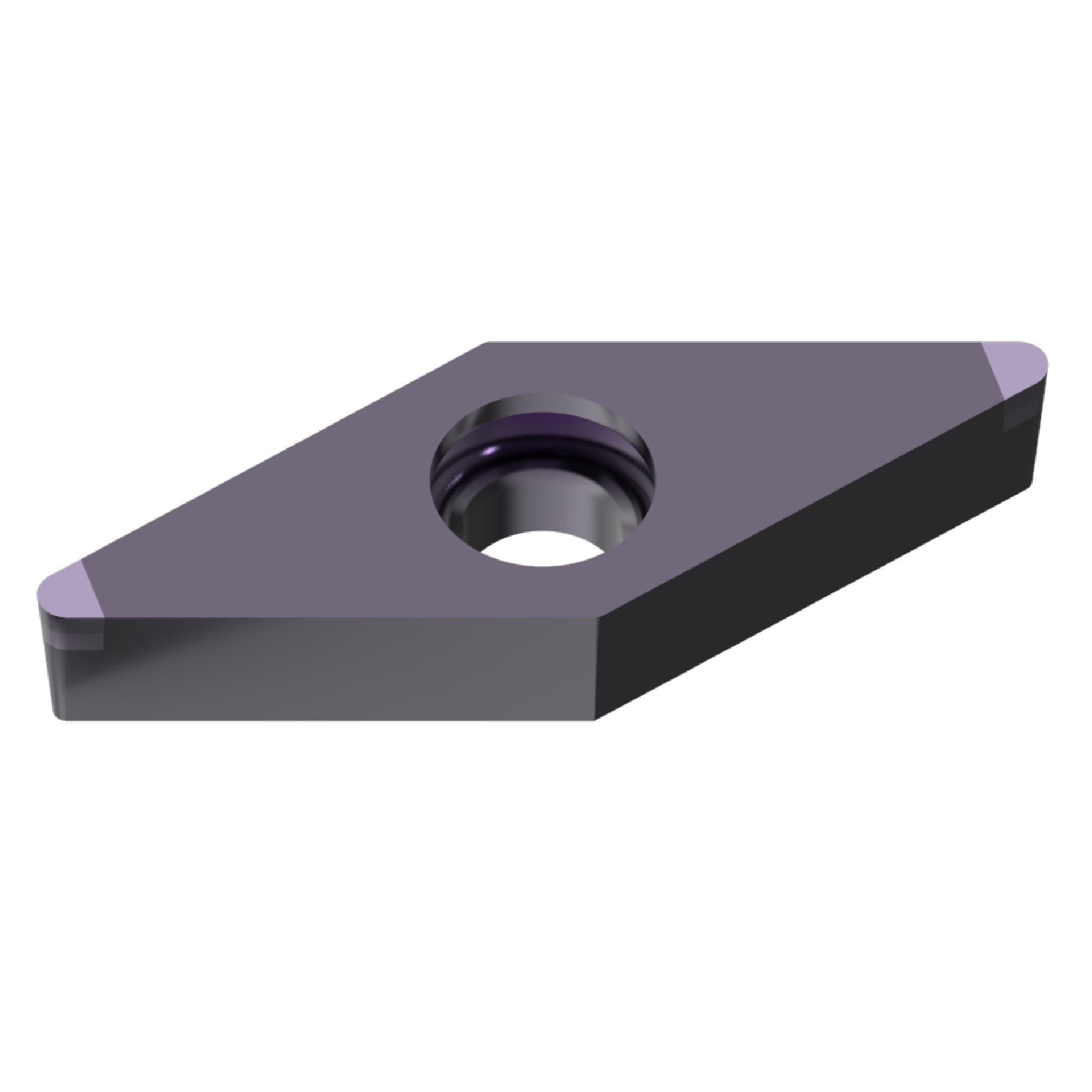

NP-VBGW220.5-GA2 BC8120 CBN INSERT
NP-VBGW220.5-GA2 BC8120 CBN INSERT
MIT10518359
10518359
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10518359
- Chipbreaker: GA
- Corner Radius: 0.2 mm
- Cutting Direction: Neutral
- Included Angle: 35 deg
- Inscribed Circle: 6.35 mm
- Insert Style: VBGW
- ISO Code: NP-VBGW110302GA2 BC8120
- Material: Carbon
- Rake: Positive
- Relief Angle: 5 deg
- Shape: Rhombic
- Thickness: 3.18 mm
- Type: Positive
- ANSI Code: NP-VBGW220.5-GA2
- For Use On: Cast Iron
- Has Attributes: Yes
- Has Image: Yes
- Length: 11.07 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8120
- Application
For Continuous-Light Interrupted Machining
