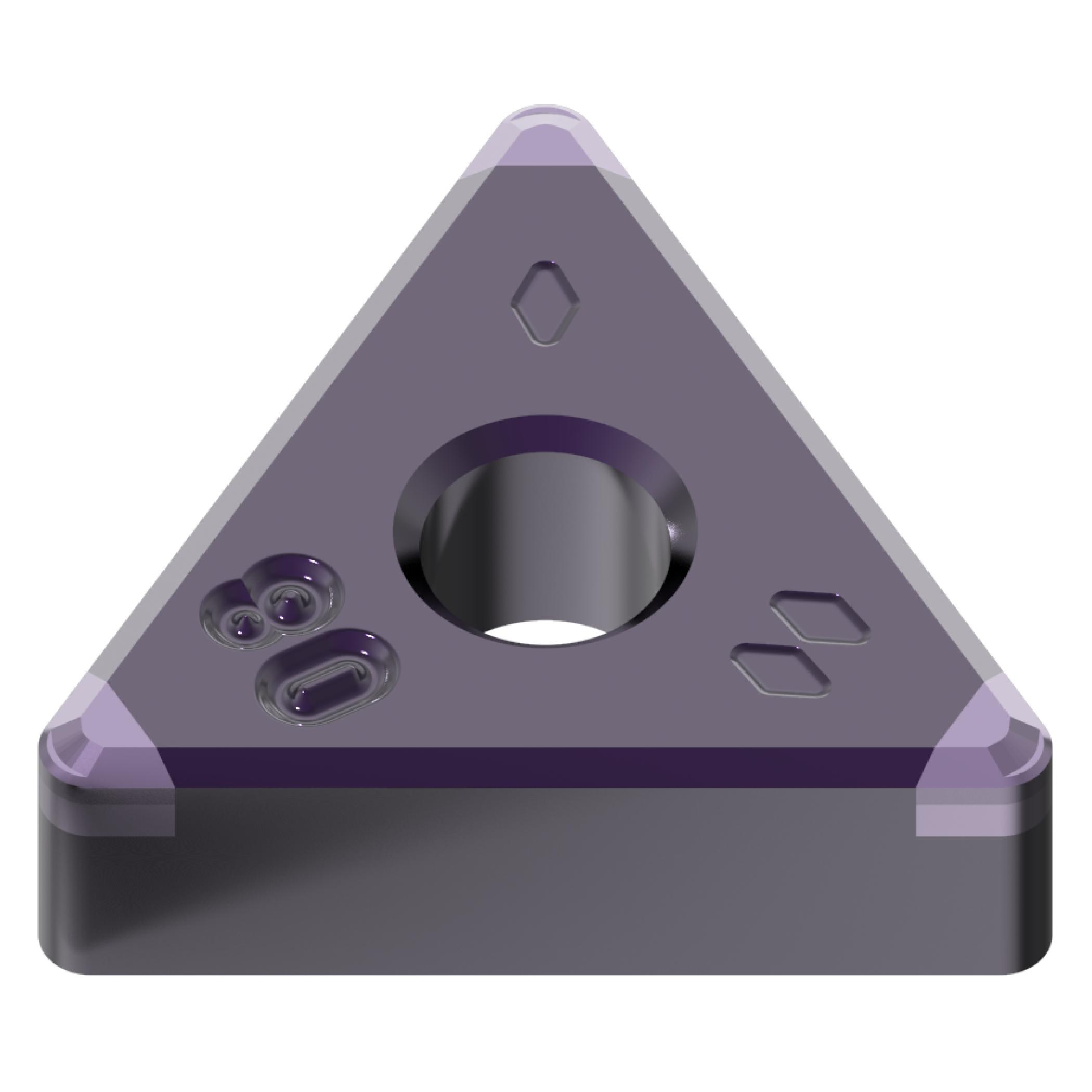

BM-TNGM333-TA3 BC8120 CBN INSERT
BM-TNGM333-TA3 BC8120 CBN INSERT
MIT10518236
10518236
117.57
/ EA
http://schema.org/OutOfStock
/Product/MIT10518236
- Chipbreaker: TA
- Corner Radius: 1.2 mm
- Cutting Direction: Neutral
- Hole Diameter: 0.15 in
- Included Angle: 60 deg
- Inscribed Circle: 9.525 mm
- Insert Style: TNGM
- ISO Code: BM-TNGM160412TA3 BC8120
- Material: Carbon
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Triangle
- Thickness: 4.76 mm
- Type: Negative
- ANSI Code: BM-TNGM333-TA3
- Has Attributes: Yes
- Has Image: Yes
- Length: 16.5 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8120
- Application
For Interrupted Machining
