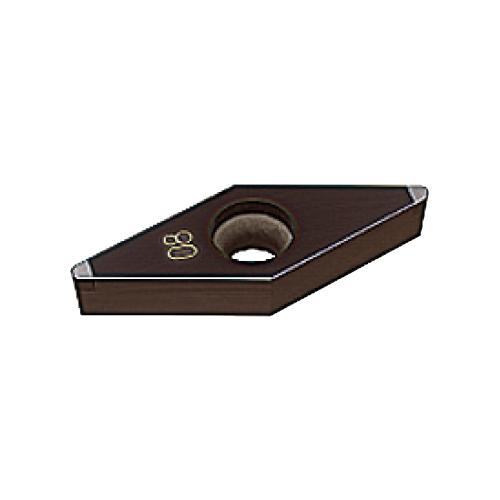

NP-VBGW330.5-GS2 BC8110 CBN INSERT
NP-VBGW330.5-GS2 BC8110 CBN INSERT
MIT10516478
10516478
91.37
/ EA
http://schema.org/OutOfStock
/Product/MIT10516478
- Chipbreaker: GS
- Corner Radius: 0.2 mm
- Cutting Direction: Neutral
- Included Angle: 35 deg
- Inscribed Circle: 9.525 mm
- Insert Style: VBGW
- ISO Code: NP-VBGW160402GS2 BC8110
- Material: Carbon
- Rake: Positive
- Relief Angle: 5 deg
- Shape: Rhombic
- Thickness: 4.76 mm
- Type: Positive
- ANSI Code: NP-VBGW330.5-GS2
- For Use On: Cast Iron
- Has Attributes: Yes
- Has Image: Yes
- Length: 16.61 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: BC8110
- Application
For Continuous-Light Interrupted Machining
