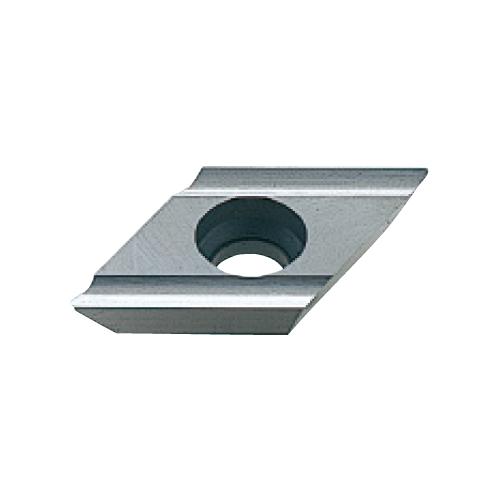

DEGX430.5L HTi10 DEGX150402L HTi10
DEGX430.5L HTi10 DEGX150402L HTi10
MIT101568
101568
32.44
/ EA
http://schema.org/OutOfStock
/Product/MIT101568
- Chipbreaker: standard
- Corner Radius: 0.2 mm
- Cutting Direction: Left Hand
- Hole Diameter: 0.201 in
- Included Angle: 55 deg
- Inscribed Circle: 12.7 mm
- Insert Style: DEGX
- ISO Code: DEGX150402L HTi10
- Material: Carbide
- Rake: Positive
- Relief Angle: 20 deg
- Shape: Rhombic
- Thickness: 4.76 mm
- Type: Solid
- ANSI Code: DEGX430.5L
- Has Attributes: Yes
- Has Image: Yes
- Length: 15.5 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: HTi10
- Application
For Aluminum Alloy
