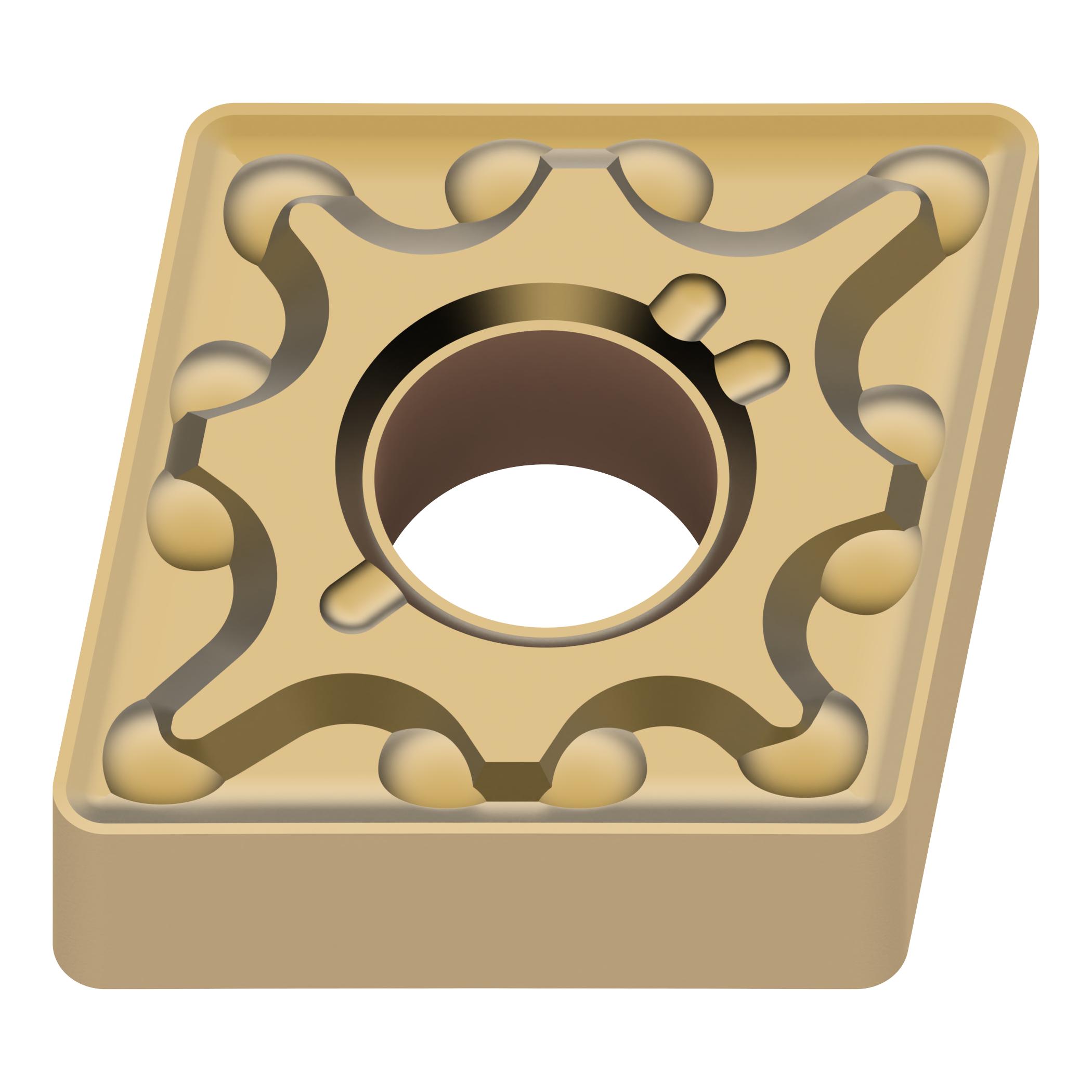

CNMG644MA US735 CNMG190616-MA US735
CNMG644MA US735 CNMG190616-MA US735
MIT101221
101221
35.28
/ EA
http://schema.org/OutOfStock
/Product/MIT101221
- Chipbreaker: MA
- Corner Radius: 1.6 mm
- Cutting Direction: Neutral
- Included Angle: 80 deg
- Inscribed Circle: 19.05 mm
- Insert Style: CNMG
- ISO Code: CNMG190616-MA US735
- Material: CVD Carbide
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Rhombic
- Thickness: 6.35 mm
- Type: Solid
- ANSI Code: CNMG644MA
- For Use On: Cast Iron, Heat Resistant Alloy
- Has Attributes: Yes
- Has Image: Yes
- Length: 19.34 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: US735
- Application
For Medium Cutting
