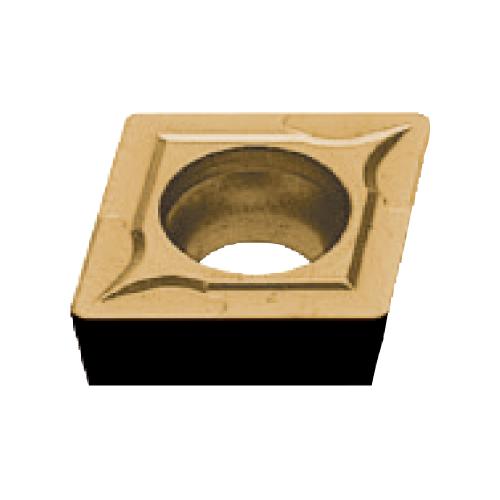

CCMT32.52 US735 CVD CARBIDE TURN INSERT
CCMT32.52 US735 CVD CARBIDE TURN INSERT
MIT100591
100591
190.38
/ PK (10)
http://schema.org/OutOfStock
/Product/MIT100591
- Chipbreaker: standard
- Corner Radius: 0.8 mm
- Cutting Direction: Neutral
- Included Angle: 80 deg
- Inscribed Circle: 9.525 mm
- Insert Style: CCMT
- ISO Code: CCMT09T308 US735
- Material: CVD Carbide
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Rhombic
- Thickness: 3.97 mm
- Type: Solid
- ANSI Code: CCMT32.52
- Has Attributes: Yes
- Has Image: Yes
- Length: 9.67 mm
- Manufacturer Name: Mitsubishi Materials USA Corp
- Manufacturer's Grade: US735
- Application
For Medium Cutting
