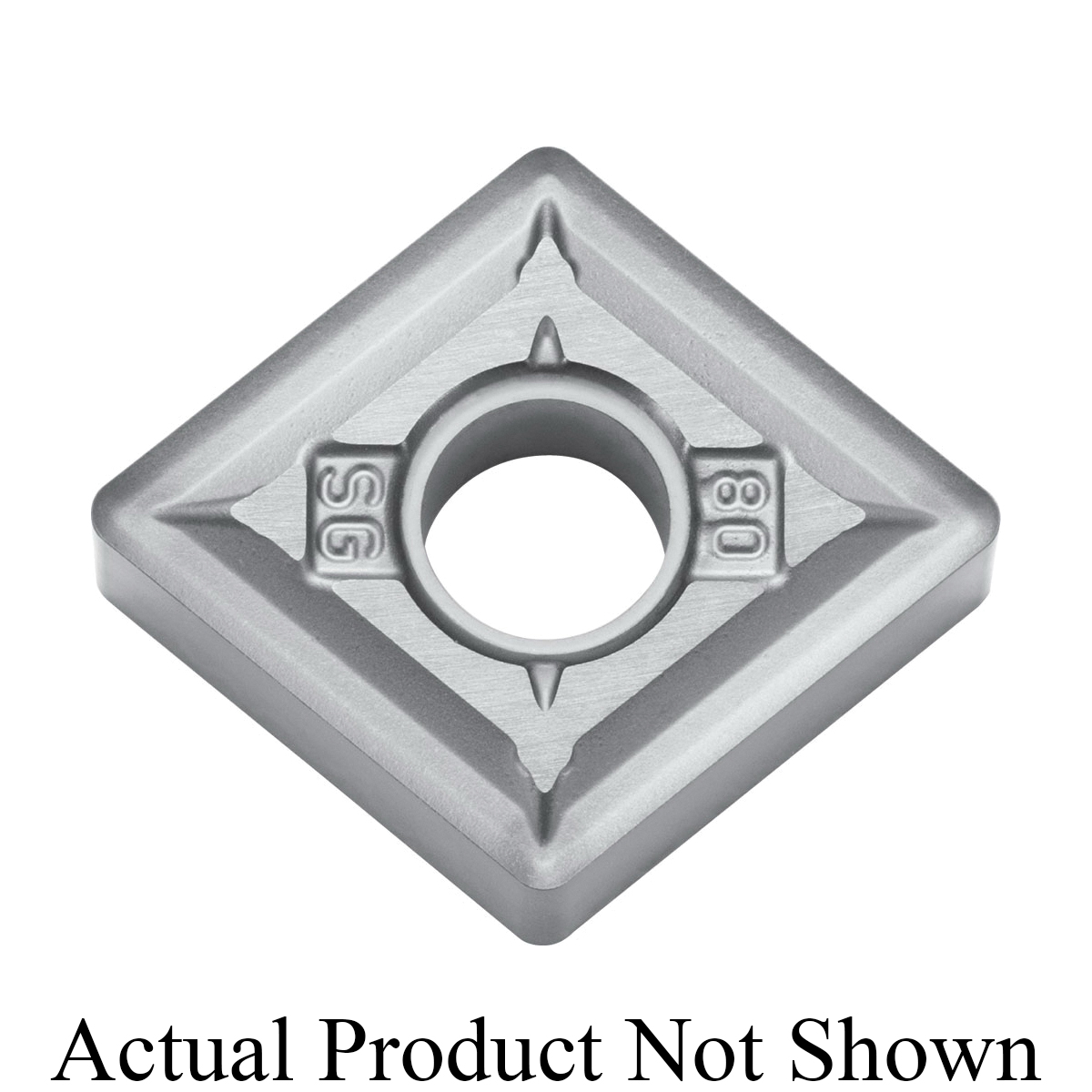

CNMG432SGSW05 TURNING INSERT

CNMG432SGSW05 TURNING INSERT

KYOCTWH00900 TWH00900
10.04 / EA
http://schema.org/OutOfStock
CNMG432SGSW05 TURNING INSERT
  • Applicable Materials: Titanium Alloy
  • Chipbreaker: SG
  • Corner Radius: 1/32in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #432
  • Insert Style: CNMG
  • ISO Code: CNMG120408SG
  • Material: Carbide
  • Material Grade: S
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Rhombic
  • Surface Treatment: Uncoated/WC/Co Coated
  • Thickness: 3/16in
  • Type: 4-Cutting Edge
  • ANSI Code: CNMG432SGSW05
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: SW05
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • ISO identification symbol K carbide (K05 relevant)
  • Continuous cutting and finishing of titanium alloys maintaining great wear resistance
  • Heat-resistant alloy with 4 cutting edges
ECCN: EAR99
