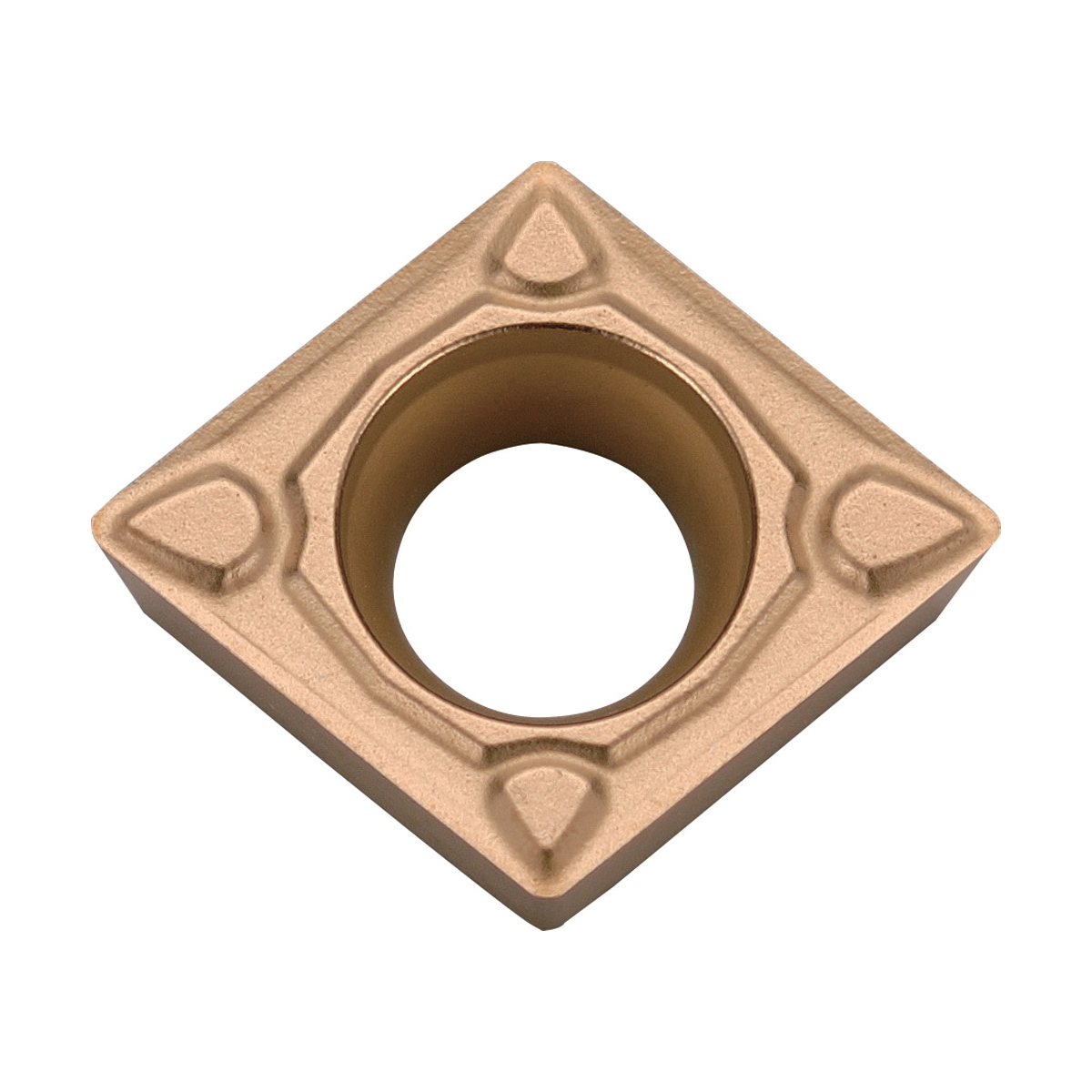

CCMT3251MQSW05 TURNING INSERT

CCMT3251MQSW05 TURNING INSERT

KYOCTWH00491 TWH00491
10.99 / EA
http://schema.org/OutOfStock
CCMT3251MQSW05 TURNING INSERT
  • Applicable Materials: Titanium Alloy
  • Chipbreaker: MQ
  • Corner Radius: 1/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.1732in
  • Included Angle: 80°
  • Inscribed Circle: 3/8in
  • Insert Size: #3251
  • Insert Style: CCMT
  • ISO Code: CCMT09T304MQ
  • Material: Carbide
  • Material Grade: S
  • Rake: Positive
  • Relief Angle: 7°
  • Seat Size: 9
  • Shape: Rhombic
  • Surface Treatment: Uncoated/WC/Co Coated
  • Thickness: 5/32in
  • Type: 2-Cutting Edge
  • ANSI Code: CCMT3251MQSW05
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: SW05
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • ISO identification symbol K carbide (K05 relevant)
  • Continuous cutting and finishing of titanium alloys maintaining great wear resistance
  • Good chip evacuation at internal turning
  • Small curled chips
  • Prevents chip entanglement with toolholder and stabilizes surface roughness
  • Stainless steel/HRSA with 2 cutting edges
ECCN: EAR99
