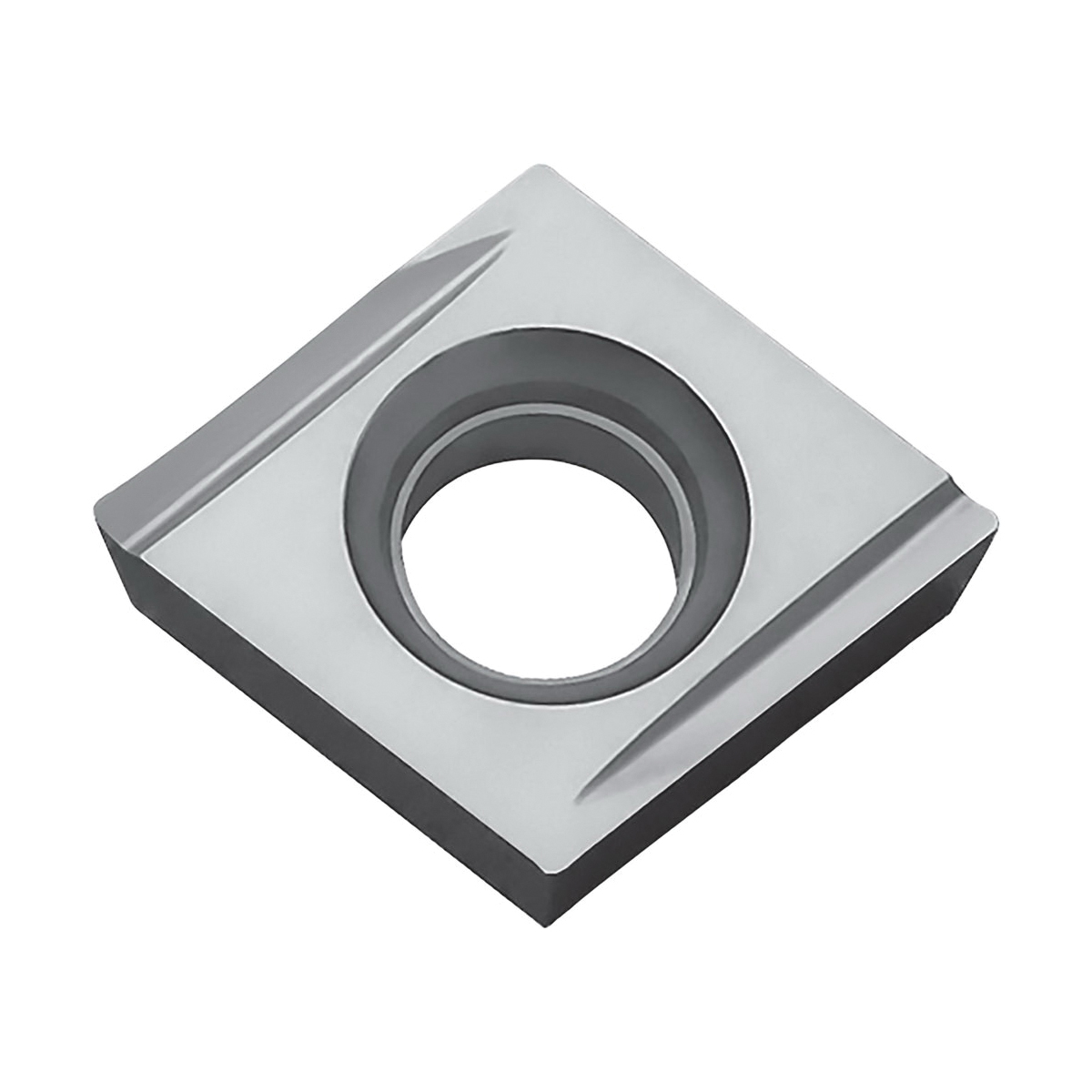

CPMH25151LYKW10 TURNING INSERT

CPMH25151LYKW10 TURNING INSERT

KYOCTWE04651 TWE04651
13.74 / EA
http://schema.org/OutOfStock
CPMH25151LYKW10 TURNING INSERT
  • Applicable Materials: Gray Cast Iron, Non-Ferrous Metals and Titanium Alloy
  • Chipbreaker: Y
  • Corner Radius: 1/64in
  • Hand Direction: Left Hand
  • Hole Diameter: 0.1378in
  • Included Angle: 80°
  • Inscribed Circle: 5/16in
  • Insert Size: #25151
  • Insert Style: CPMH
  • ISO Code: CPMH080204L-Y
  • Material: Carbide
  • Material Grade: N, S, K
  • Rake: Positive
  • Relief Angle: 11°
  • Seat Size: 8
  • Shape: Rhombic
  • Surface Treatment: Uncoated/WC/Co Coated
  • Thickness: 3/32in
  • Type: 2-Cutting Edge
  • ANSI Code: CPMH25151LYKW10
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KW10
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring and Internal Facing Applications
  • ISO identification symbol K carbide (K10 relevant)
  • Stable cutting of cast iron, non-ferrous materials, non-metals and titanium alloys
  • Sharp cutting performance and good surface finish
ECCN: EAR99
