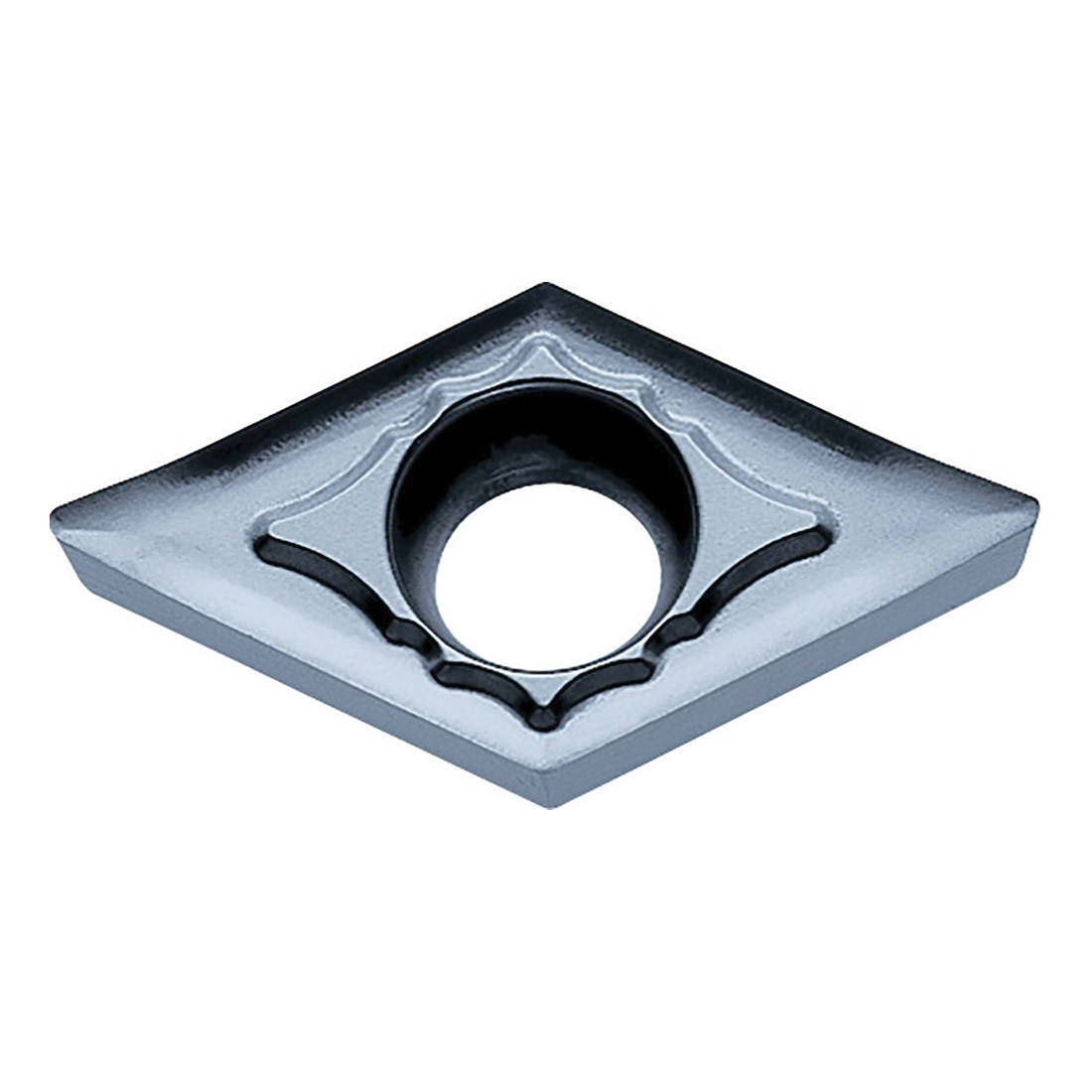

DCGT3251AHKW10 TURNING INSERT

DCGT3251AHKW10 TURNING INSERT

KYOCTWE04545 TWE04545
20.59 / EA
http://schema.org/OutOfStock
DCGT3251AHKW10 TURNING INSERT
  • Applicable Materials: Non-Ferrous Metals, Copper Alloys, Aluminum and Aluminum Alloys
  • Chipbreaker: AH
  • Corner Radius: 1/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.173in
  • Included Angle: 55°
  • Inscribed Circle: 3/8in
  • Insert Size: 3251
  • Insert Style: DCGT
  • ISO Code: DCGT11T304AH KW10
  • Material: Carbide
  • Material Grade: N
  • Rake: Positive
  • Relief Angle: 7°
  • Seat Size: 11
  • Shape: Rhombic
  • Surface Treatment: UNCOATED
  • Thickness: 5/32in
  • Type: 1-Sided
  • ANSI Code: DCGT3251AH KW10
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KW10
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
Medium Finishing and General Turning
  • AH chipbreaker - positive chip groove and good chip control with low cutting forces
  • Polished surface reduces adhesion
  • Sharp edge, non-ferrous metals
