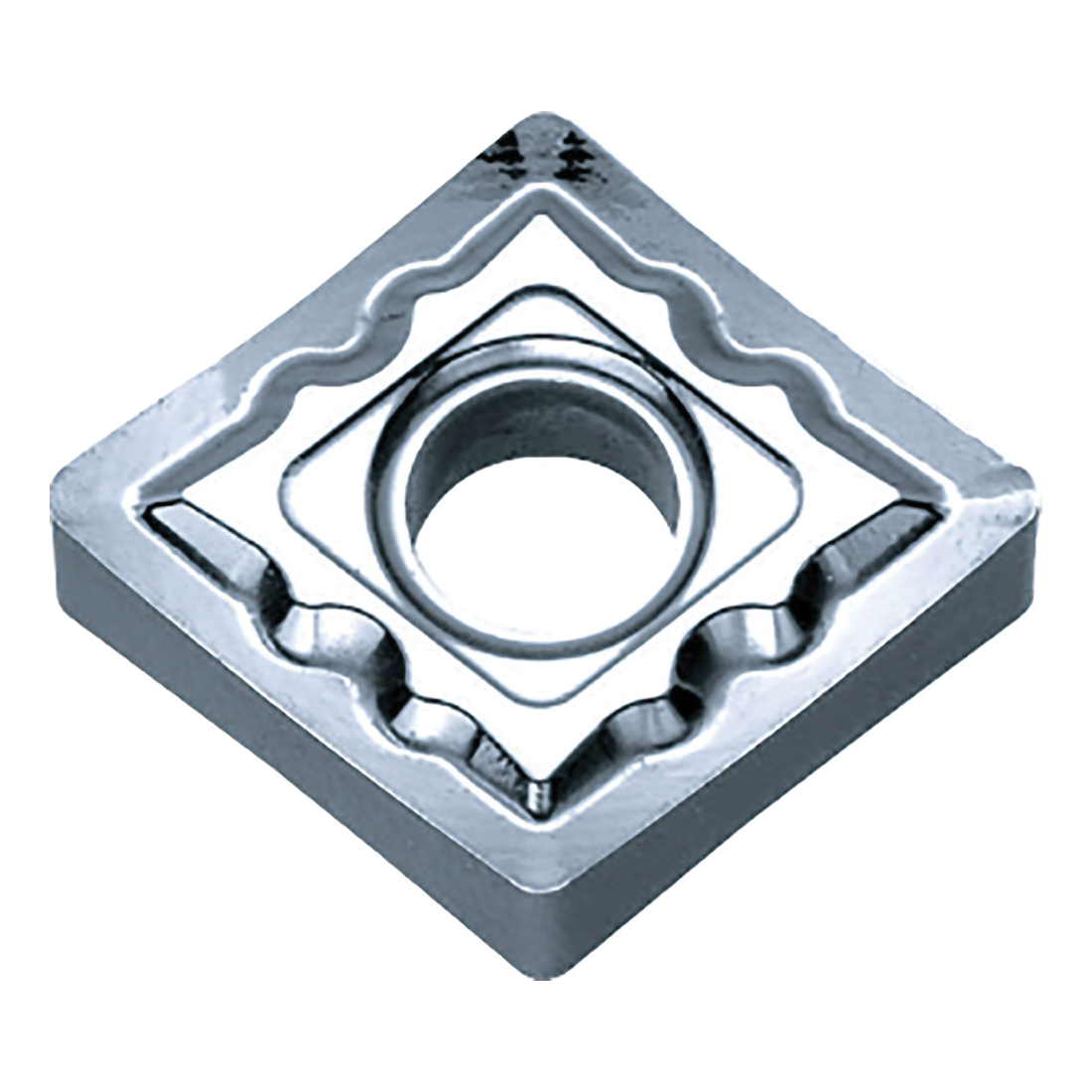

CNMG431AHKW10 TURNING INSERT

CNMG431AHKW10 TURNING INSERT

KYOCTWE04420 TWE04420
10.84 / EA
http://schema.org/OutOfStock
CNMG431AHKW10 TURNING INSERT
  • Applicable Materials: Non-Ferrous Metals
  • Chipbreaker: AH
  • Corner Radius: 1/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.203in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: 431
  • Insert Style: CNMG
  • ISO Code: CNMG120404AH KW10
  • Material: Carbide
  • Material Grade: N
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Diamond
  • Surface Treatment: UNCOATED
  • Thickness: 3/16in
  • Type: 2-Sided
  • ANSI Code: CNMG431AH KW10
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KW10
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
Medium Roughing and General Turning
  • AH chipbreaker - positive chip groove and good chip control with low cutting forces
  • Polished surface reduces adhesion
